Precilasers

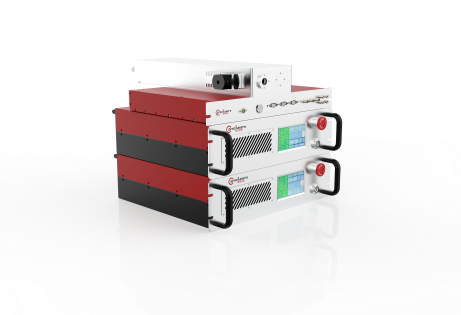

578nm(SHG+SFG)
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
578nm(SHG+SFG) A thulium-doped fiber DFB laser is frequency-doubled, then sum frequency generated with a erbium-doped fiber laser to produce high-power narrow-linewidth laser output.。
Features
- Narrow Linewidth Low Intensity
- Noise High Power Active
- Power Stabilization
- Excellent Beam Quality
- Never Mode
Applications
- Optical Lattices
- Atomic Cooling and Trapping
- Laser Medical Treatment Solar
- Cell Processing
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength | 578nm |
| Output Power | >2W / >5W |
| Tuning Range (temperature) (2) | >150GHz,Continuous without mode hop |
| Output Mode | Spatially collimated output |
| Beam Waist Diameter | 0.7-1.0mm |
| Power Adjustment Range | Power adjustment range 5-100% |
| Pointing Stability | <10µrad |
| Linewidth (3) (100 us integration) | <30kHz |
| Polarization Extinction Ratio | Linear >20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M2<1.1 |
| Fast Tuning Range | >3GHz |
| Fast Tuning Bandwidth | >5kHz |
| Current Tuning Range | >500MHz |
| Current Tuning Bandwidth | >1MHz |
| Relative Intensity Noise | <0.08% (RMS,10Hz-100MHz integral) |
| Cooling | Air Cooling/Water cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
