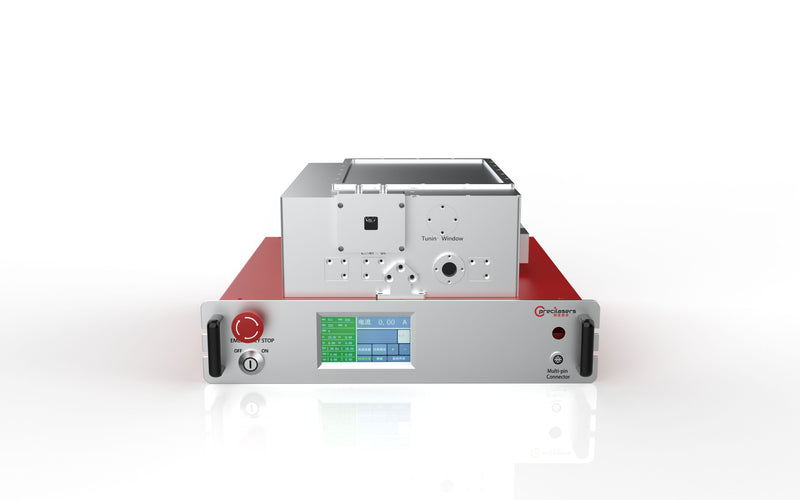

556nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
556nm Narrow linewidth laser Based on high-power, low-noise ytterbium-doped fiber amplification and frequency doubling technology, it achieves high-power, narrow-linewidth laser output at any central wavelength within the 543-556nm range.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
Applications
- Optical Lattice
- Atomic Cooling and Trapping
- Laser Medicine Solar Cell
- Processing
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength Range | 543-556nm |
| Typical Wavelength | 556nm |
| Output Mode | CW |
| Output Power | >0.5W / >1.5W / >5W / >10W |
| Tuning Range (Temperature) | >0.35nm, Never Mode-hop |
| Output Mode | Free Space Collimated Output , Diameter 0.7-1.0mm |
| Linewidth (2) (100us) | <20kHz |
| PER | >20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | M2<1.1 |
| Fast Frequency Tuning Range | >3GHz |
| Fast Frequency Tuning Bandwidth | >5kHz |
| RIN (10Hz-100MHz, RMS) | <0.08% |
| Cooling | Air Cooling / Water Cooling |
| Power Supply | 100-240V, 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
