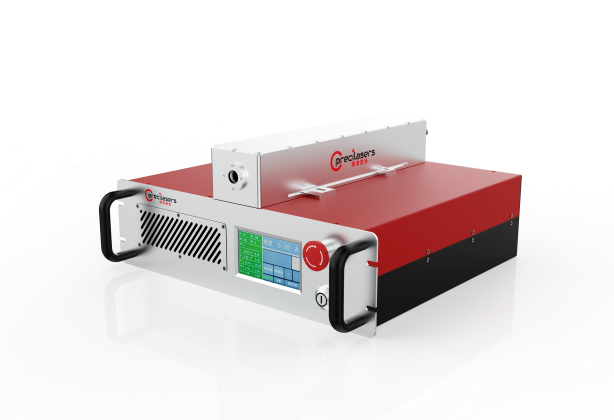

532nm Non-single frequency laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
532nm Non-single frequency laser Based on non-single frequency seed laser, fiber laser amplification and high-efficiency frequency conversion technology, Precilasers can provide non-single frequency 532nm laser with maximum output of 40W, long life and excellent beam quality.
Features
- Long Life High Power
- Excellent Beam Quality Never
- Mode
| Models | FL-NSF-532-X (1) -CW |
|---|---|
| Center Wavelength | 532.00nm |
| Linewidth (2) | 40GHz±1GHz |
| Operation Mode | Continuous |
| Output Power | >10W / >20W / >40W |
| Beam Waist Diameter | 0.8±0.2 mm |
| Beam Waist Location Relative to Output Window (m) | Output window within ±0.3m |
| Beam Divergence (Full Angle) | <0.9mrad |
| Beam Ellipticity | 0.9-1.1 |
| Pointing Stability | <5µrad |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, Vertical±3°, >23dB |
| Power Stability | <0.75% @3hours, RMS |
| Relative Intensity Noise | <0.1%(RMS, 10Hz-10MHz integration) |
| Cooling | Air Cooling / Water Cooling |
| Cold Start | <1 hour |
| From Standby | <30 minutes |
| Laser Head Dimensions | ≤358mm x 90mm x 70mm |
| Laser Controller Dimensions | ≤483mm x 420mm x 133mm / ≤483mm x 422mm x 105mm |
| Temperature | 15-30 °C / 15-35 °C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
