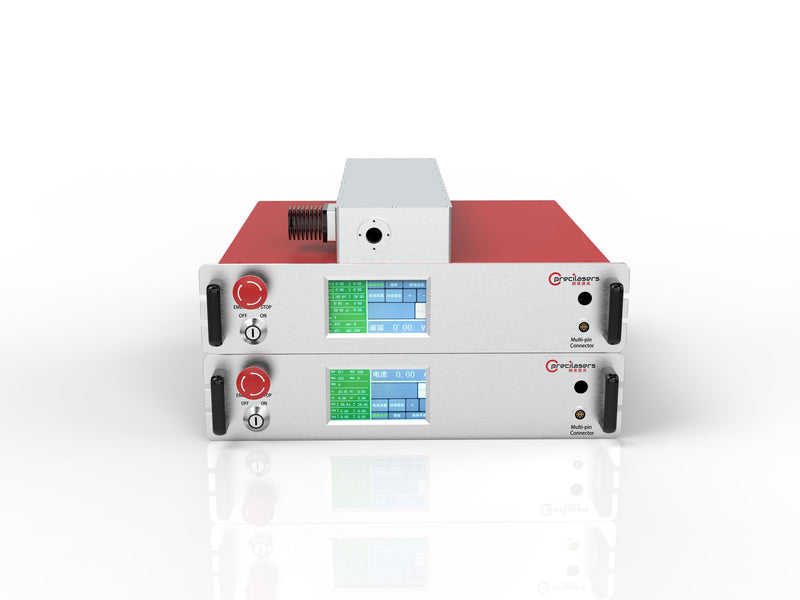

480nm Widely tunable laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
480nm Widely tunable laser Based on widely tunable seed lasers, fiber laser amplification and high-efficiency frequency conversion technology, Precilasers can provide widely tunable 480nm narrow linewidth lasers with high frequency stability, long lifetime and excellent beam quality.
Features
- High Power Narrow Linewidth
- Excellent Beam Quality High
- Power Stability Never Mode
| Models | FL-SF-480-xx (1) -CW |
|---|---|
| Center Wavelength | 480nm |
| Operation Mode | Continuous |
| Output Power | >0.8W |
| Linewidth (2) (100 us integration) | <150kHz |
| Long Term Power Stability | <0.75% @3hrs, RMS |
| Tuning Range | >5nm |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >5kHz |
| Current Tuning Range | >1GHz |
| Current Tuning Bandwidth | >1MHz |
| Output Mode | Spatial collimation output, diameter0.6-1mm |
| Beam Quality | TEM00, M²<1.3 |
| Polarization Extinction Ratio | >20dB,Linear |
| Cooling | Air Cooling / Water Cooling |
| Temperature | 15-30°C |
| Power Consumption | <350W |
| Power Supply | 100V-240V, AC, 50Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
