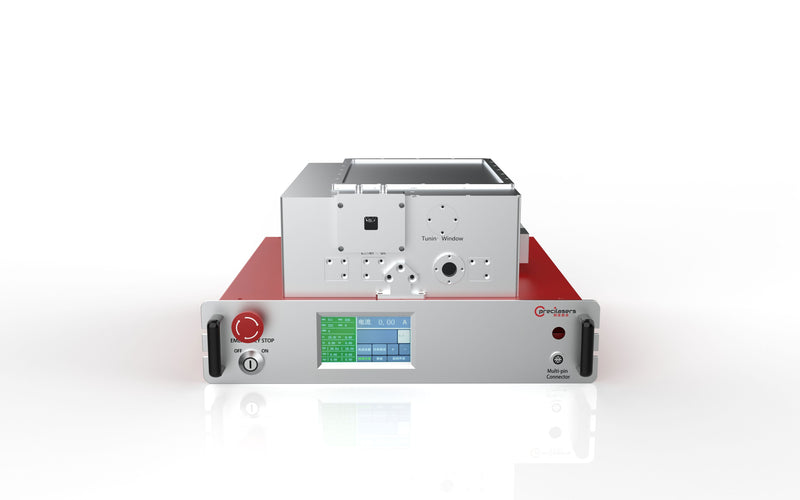

515nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
515nm Narrow linewidth laser Based on high-power, low-noise ytterbium-doped fiber amplification and frequency doubling technology, Precilasers can achieve high-power, narrow-linewidth laser output at 515nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
Applications
- Laser cooling
- Optical Lattice Pump laser
- Ti
- Saphire Biomedical Fundamental light
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength | 515nm |
| Seed Laser Type | Fiber DFB Seed Laser (1012-1134nm) / Fixed External Cavity Diode Laser (FECL,1012-1134nm) |
| Output Power | >20W/30W/80W |
| Thermal Tuning Range (2) | >0.35nm, Never Mode-hop / >10GHz, Never Mode-hop |
| Output Mode | PM Fiber Output, FC/APC (Output Power ≤0.5W) OR Free Space Output (Compatible with all versions) |
| Beam Diameter (3) | 0.7-1.0mm |
| Power Tuning Range | 10-100% |
| Beam Pointing Stability | <50µrad |
| Linewidth (4) (100us) | <6kHz/20kHz / <20kHz/60kHz |
| PER | linear,>20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M 2 <1.1 |
| Fast Frequency Tuning Range | >3GHz / >1GHz |
| Fast Frequency Tuning Bandwidth | >5kHz,PZT Tuning / >1MHz,Current Tuning |
| AOM Tuning Range (Optional) | >±5MHz |
| AOM Tuning Bandwidth (Optional) | >500kHz |
| RIN | <0.1% (RMS,10Hz-100MHz) |
| Cooling | Air Cooling (Output Power≤20W) /Water Cooling(Compatible with all versions) |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
