480nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

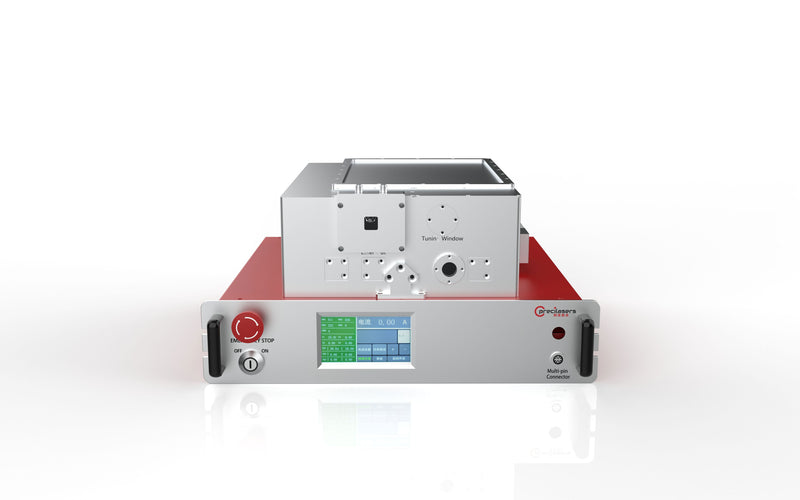

480nm Narrow linewidth laser Based on single frequency seed laser, fiber laser amplification and high efficiency quadruple frequency conversion technology, Precilasers can provide narrow linewidth lasers of 480nm with high frequency stability, long lifetime and excellent beam quality.
Features
- Narrow Linewidth High Power
- Excellent Beam Quality High
- Power Stability Never Mode
Applications
- Precision Measurement Quantum Computing
- Interference Exposure
| Models | FL-SF-480-xx (1) -CW |
|---|---|
| Center Wavelength | 480.00nm |
| Operation Mode | Continuous |
| Output Power | >0.05W / >0.4W / >2W / >5W |
| Linewidth (2) (100 us integration) | <40kHz |
| Long Term Power Stability | <0.75% @3hrs, RMS |
| Tuning Range | >0.25nm, Continuous without mode hop |
| PZT Tuning Range | >12GHz |
| PZT Tuning Bandwidth | >5kHz |
| Output Mode | Spatial collimation output, diameter0.6-1mm |
| Beam Quality | TEM00, M²<1.3 |
| Polarization Extinction Ratio | >20dB, Linear |
| Cooling | Air Cooling / Water Cooling |
| Weight | <50kg |
| Temperature | 15-30°C |
| Power Consumption | <300W |
| Power Supply | 100V-220V, AC, 50Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
