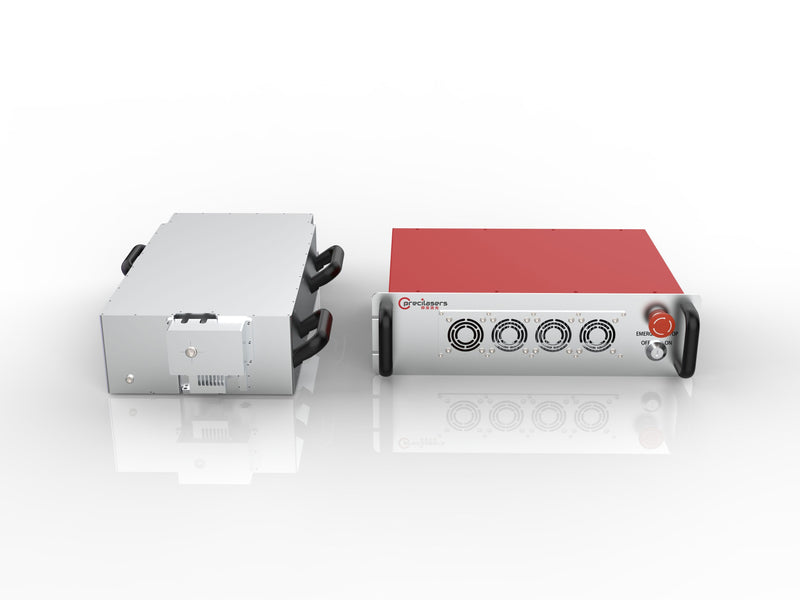

561nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
561nm Narrow linewidth laser Based on high-power, low-noise Yb-doped fiber lasers amplifier and frequency doubling technology, Precilasers can provide high-power, narrow linewidth laser output from 556 to 567 nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
Applications
- Laser cooling
- Optical Lattice Pump laser
- Ti
- Saphire Biomedical Fundamental light
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength Range | 556-567nm |
| Typical Wavelength | 556nm / 567nm |
| Operation Mode | CW |
| Output Power | >0.5W / >1W |
| Tuning Range (Temperature) | >0.35nm, Continuous, Mode-Hop-Free Operation |
| Output Mode | Spatially Collimated Output, 0.7-1.0 mm Beam Diameter |
| Linewidth (2) (100 us integration ) | <20kHz |
| PER | >20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | M2<1.1 |
| Fast Tuning Range | >3GHz |
| Fast Tuning Bandwidth | >5kHz |
| Relative Intensity Noise (10Hz-100MHz, RMS) | <0.08% |
| Cooling | Air cooling / Water cooling |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
