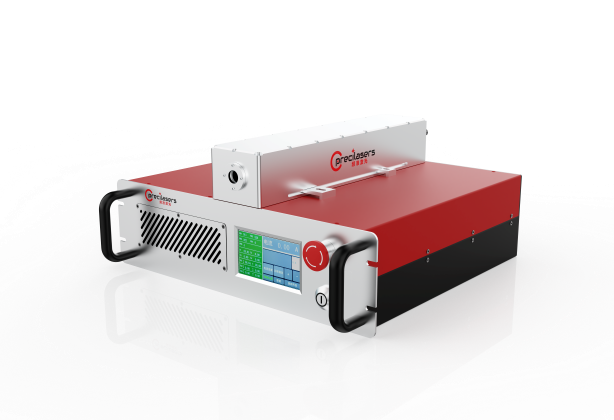

606nm Narrow linewidth laser Based on high-power, low-noise thulium-doped fiber amplification and frequency tripling technology, high-power narrow-linewidth laser output with any central wavelength in the range of 578-610nm is achieved.
Features
- Narrow Linewidth Low Intensity
- Noise High Power Active
- Power Stability
- Excellent Beam Quality
- Never Mode
- Resistant to High and
- Low Temperature and Vibration
- Working Environment
Applications
- Optical Lattices
- Atomic Cooling And Trapping
- Laser Medical Treatment Solar
- Cell Processing
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Selectable Center Wavelength | 578-610nm |
| Common Wavelengths | 578nm |
| Seed Laser Type | Thulium-doped fiber DFB seed laser |
| Output Power (2) | >0.8W |
| Tuning range (temperature) | >0.33nm, Continuous without mode hop |
| Output Mode | Spatially Collimated Output |
| Beam Waist Diameter (2) | 0.7-1.0mm |
| Power Adjustment Range | Power Adjustment Range 5-100% |
| Pointing Stability | <10µrad |
| Linewidth (3) (100 us integration) | <30kHz |
| Polarization Extinction Ratio | Linear,>20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M 2 <1.1 |
| Fast Tuning Range | >3GHz |
| Fast Tuning Bandwidth | >5kHz |
| AOM Tuning Range (Option) | >±5MHz |
| AOM Tuning Bandwidth (Option) | >500kHz |
| Relative Intensity Noise | <0.08% (RMS,10Hz-100MHz integration) |
| Cooling | Air Cooling/Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
