Precilasers
589nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH

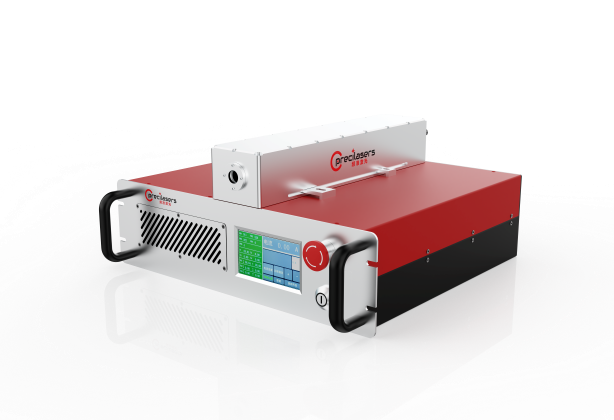

589nm Narrow linewidth laser Based on high-power, low-noise raman fiber lasers amplifier and frequency doubling technology, Precilasers can provide high-power, narrow linewidth laser output at 589nm
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
Applications
- Lithium Atom Cooling Quantum
- Simulation Bioscience Medical Beauty
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Center Wavelength | 589nm |
| Operation Mode | CW |
| Output Power | >2W / >10W / >30W |
| Thermal Tuning Range | >15GHz, Never Mode-hop |
| Output Mode | Free Space Output |
| Beam Diameter | 0.7-1.0mm |
| Linewidth (2) (100us) | <40kHz |
| PER | >20dB |
| Fast Frequency Tuning Range | >500MHz |
| Fast Frequency Tuning Bandwidth | >1MHz |
| Power Stability | <0.75% |
| Beam Quality | M 2 <1.1 |
| RIN (10Hz-100MHz, RMS) | <0.75% |
| Cooling | Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
