PreciLasers

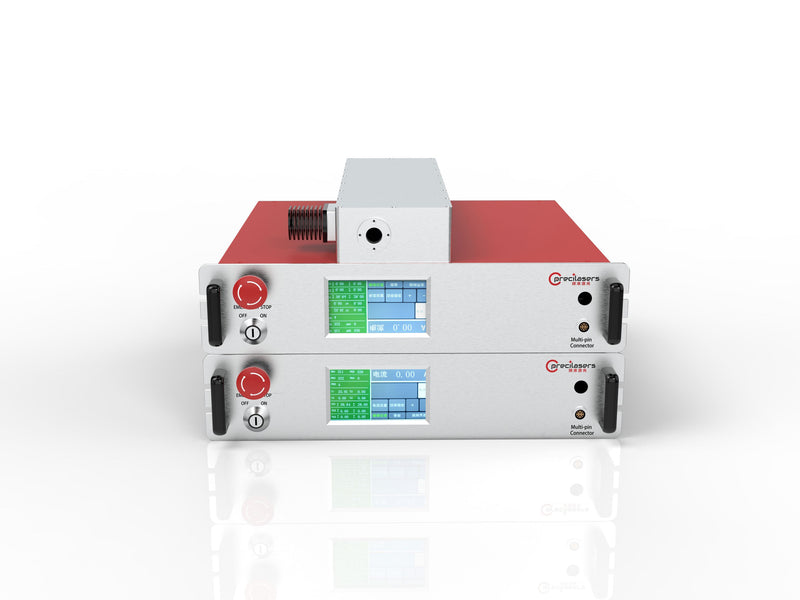

640-660nm Laser — Narrow Linewidth CW Laser
PL-NL-640-660Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
5.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
640-660nm Laser Based on narrow linewidth seed lasers and low noise fiber amplifiers, Precilasers can provide high performance 640-660nm laser output.
Features
- Long life High Power
- Narrow Linewidth Excellent Beam
- Quality Never Mode
| Models | FL-SF-X-Y-CW (1) |
|---|---|
| Wavelength Range | 640-660nm |
| Typical Wavelength | 649nm, 656nm |
| Linewidth (2) (100 us integration) | <20kHz |
| Operation Mode | CW |
| Output Power | >100mW / >2W / >5W |
| Output Mode | Collimated output |
| PZT Tuning Bandwidth | >5kHz |
| PZT Tuning Range | >3GHz |
| Current Fast Tuning Bandwidth | >1MHz |
| Current Fast Tuning Range | >500MHz |
| Beam Waist Diameter | 0.8±0.2 mm |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, Vertical >23dB |
| Power Stability | <0.75% @3hours, RMS |
| Cooling | Air Cooling / Water cooling |
| Cable Length between Controller and Head | >1.5m |
| Temperature | 15-30 °C / 15-35 °C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
