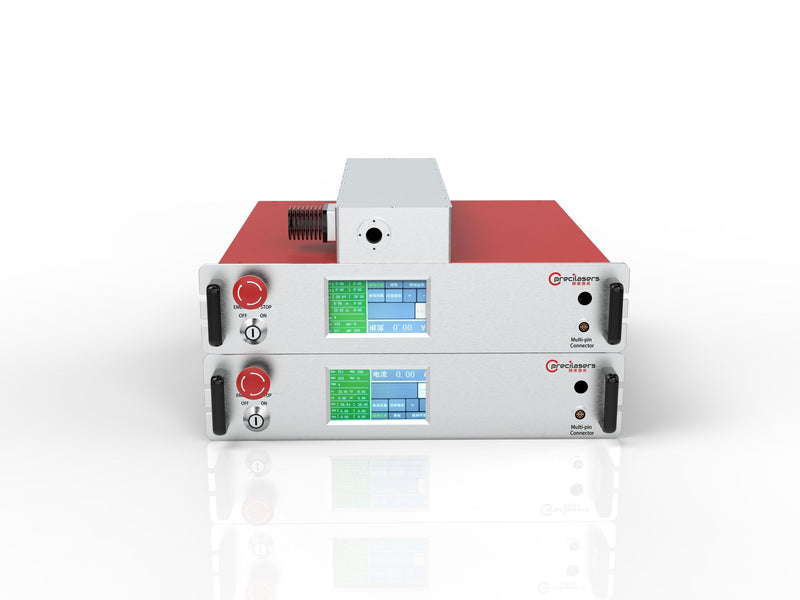

649nm Narrow Linewidth Laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
649nm Narrow Linewidth Laser Based on cs and low-noise fiber amplifiers, Precilasers can provide high-performance 649nm laser output.
Features
- Long life High Power
- Narrow Linewidth Excellent Beam
- Quality Never Mode
| Models | FL-SF-X-Y-CW (1) |
|---|---|
| Wavelength | 649nm |
| Linewidth (2) (100 us integration) | <20kHz |
| Operation Mode | Continuous |
| Output Power | >100mW / >2W / >5W |
| Output Mode | Collimated output |
| PZT Tuning Bandwidth | >5kHz |
| PZT Tuning Range | >3GHz |
| Current Fast Tuning Bandwidth | >1MHz |
| Current Fast Tuning Range | >500MHz |
| Beam Waist Diameter | 0.8±0.2 mm |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, Vertical >23dB |
| Power Stability | <0.75% @3hours, RMS |
| Cooling | Air Cooling / Water cooling |
| Cable Length between Controller and Head | >1.5m |
| Temperature | 15-30 °C / 15-35 °C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
