PreciLasers

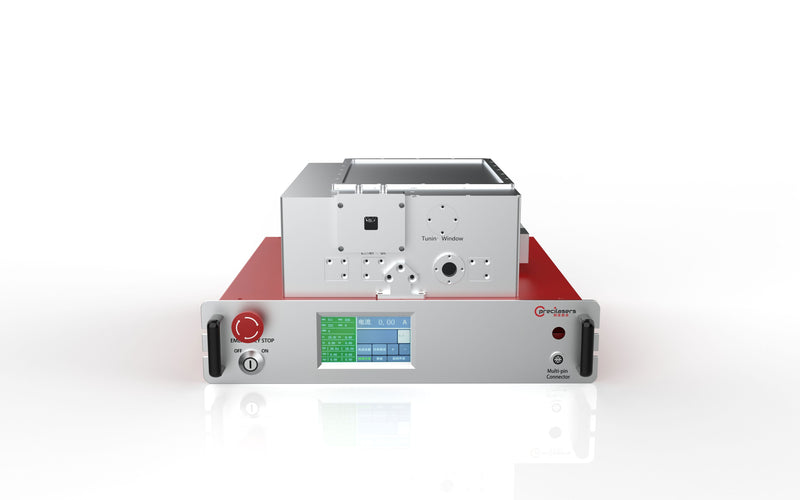

460-488nm Laser — Narrow Linewidth CW Laser
PL-NL-460-488Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
6.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
460-488nm Laser Based on single frequency seed laser,low noise fiber amplifier and high efficiency frequency convert technique, Precilasers can provide narrow linewidth 460-488nm CW lasers,features with high frequency stability,long life and good beam quality.
Features
- Narrow Linewidth High Power
- High power Stability Good
- Beam Quality Never Mod
- Hop
| Models | FL-SF-X-Y (1) -CW |
|---|---|
| Wavelength Range | 460-488nm |
| Typical Wavelength | 460nm, 480nm, 488nm |
| Linewidth (2) (100 us integration ) | <40kHz |
| Operational Mode | CW |
| Output Power | >50mW / >1W / >3W / >6W |
| Beam Diameter | 1±0.15 mm |
| Beam Waist Location | output aperture±0.5m |
| Beam Divergence (full angle) | <1mrad |
| Beam Circularity | >90% |
| Beam Pointing Stability (PP) | <15µrad / <50µrad |
| Beam Quality | TEM00, M²<1.3 |
| Polarization | Linear, >20dB |
| Power Stability | <0.75% @3hours, RMS |
| Relative Intensity Noise | <0.2%(RMS, 10Hz-10MHz integration) |
| Cooling | Air cooling / Water cooling |
| Cold Start | <2 hours |
| Warm Start | <30 minutes |
| Controller Size | ≤483mm x 420mm x 133mm (50mW) / ≤483mm x 520mm x 132mm (1W,3W,6W) |
| Laser Head Size | ≤466mm x 133mm x 52mm(50mW) / ≤253mm x 455mm x 118.5mm (1W,3W,6W) |
| Chiller Size | NA / ≤58cm x 29cm x 52cm |
| Chiller Weight | ≤25kg |
| Cable Length Between Laser Head And Controller | >1.5m |
| Operating Temperature (No condensing) | 15-30 °C (Air cooling) / 15-35 °C (Water cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
