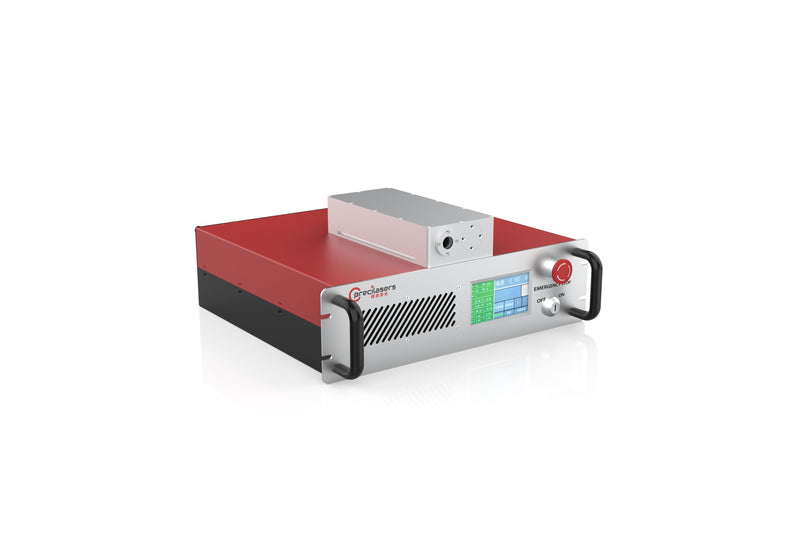

508-513nm Widely tunable laser — Narrow Linewidth CW Laser
PL-NL-508-513-Widely-tunable-laserContact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
30.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
508-513nm Widely tunable laser Based on high-power, low-noise ytterbium-doped fiber amplification and frequency doubling technology, widely tuned narrow-linewidth laser output in the wavelength range of 508-513nm is achieved.
Features
- Narrow Linewidth Low Intensity
- Noise High Power Excellent
- Beam Quality Never Mode
- Resistant to High and
- Low Temperature and Vibration
- Working Environment
Applications
- Optical Lattices
- Atomic Cooling and Trapping
- Solid
- Lasers
- Dye Lasers
- Laser Medical Treatment Solar
- Cell Processing
| Models | FL-SF-X-Y-CW (1) |
|---|---|
| Wavelength Tuning Range | 508-513nm |
| Operation Mode | CW |
| Output Power | >0.5W (2) / >1W / >2.5W / >30W |
| Mode-hop-free Tuning Range | >10GHz |
| Output Mode | Spatial collimation output, diameter0.6-1.0mm |
| Linewidth (4) (100us integration time) | <200kHz |
| Polarization Extinction Ratio | >20dB |
| Power Stability (3 Hours RMS) | <0.75% |
| Beam Quality | M 2 <1.1 |
| PZT Fast Tuning Range | >3GHz |
| PZT Fast Tuning Bandwidth | >5kHz |
| Current Tuning Bandwidth | >1MHz |
| Current Tuning Range | >1GHz |
| RIN Relative Intensity Noise (10Hz-100MHz, RMS) | <0.06% |
| Cooling | Air Cooling/Water Cooling / Water Cooling |
| Temperature | 15-30°C (Air Cooling) / 15-35°C (Water Cooling) |
| Communication | RS422 |
| Power Supply | 100-240V, 50/60Hz |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
