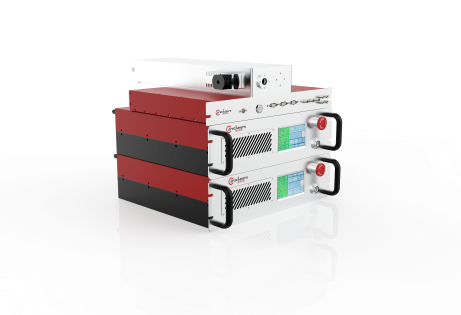

578nm-610nm Yb AMP+SFG — Narrow Linewidth CW Laser
PL-NL-578-610-Yb-AMP-SFGContact for pricing
In Stock
Key Specifications
Contact Sales
Wavelength
578.0nm
Avg Power
5.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
578nm-610nm Yb AMP+SFG The 977.5nm seed is amplified by an ytterbium-doped fiber amplifier and then frequency-coupled with an erbium-doped fiber laser to produce a high-power, narrow-linewidth laser output.
Features
- Narrow Linewidth Low Intensity
- Noise High Power Active
- Power Stabilization
- Excellent Beam Quality
- Never Mode
- Resistant to high and
Applications
- Optical Lattices
- Atomic Cooling And Trapping
- Laser Medical Treatment Solar
- Cell Processing
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Selectable Center Wavelength | 578-610nm |
| Common Wavelengths | 606nm |
| Output Power | >2W / >5W |
| Tuning Range (temperature) (2) | >15GHz,Continuous without mode-hop |
| Output Mode | Spatially collimated output |
| Beam Waist Diameter | 0.7-1.0mm |
| Power Adjustment Range | Power adjustment range 5-100% |
| Pointing Stability | <10µrad |
| Linewidth (3) (100 us integration) | <30kHz |
| Polarization Extinction Ratio | Linear, Vertical,>20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M 2 <1.1 |
| Current Tuning Range | >500MHz |
| Current Tuning Bandwidth | >1MHz |
| Relative Intensity Noise | <0.08% (RMS, 10Hz-100MHz integral) |
| Cooling | Air Cooling/Water cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Power Consumption | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
