Phasics

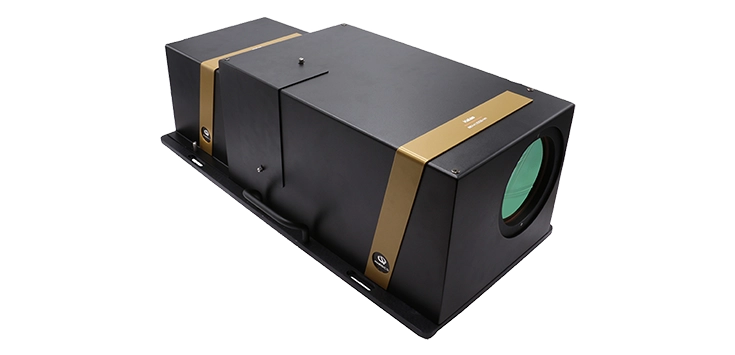

Kalas Large Beam Analyzer
PHA-KALASContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Phasics Kalas is a modular large beam analysis system designed to work with SID4 wavefront sensors. It enables wavefront and beam quality measurement for beam diameters up to 127 mm (5 inches), with all modules operating standalone.
Key Features
- Beam diameter up to 127 mm (larger on request)
- All modules standalone
- Divergence, M², and WFE measurement
- Multiple wavelength sources available
Applications
- Large aperture laser beam characterization
- High-power laser diagnostics
- Telescope and collimator testing
| Absolute Accuracy | <15 nm RMS |
| Sensor Compatibility | SID4 / SID4 HR / SID4 UHR / SID4 SWIR / SID4 SWIR HR |
| Entrance Pupil Options | 8 / 15 / 25.4 / 50.8 / 101.6 / 127 mm (larger on request) |
| Source Wavelength Options | 405 / 530 / 625 / 740 / 780 / 810 / 850 / 940 / 1050 / 1550 nm |
| Dimensions (W×H×L) | 450 x 350 x 250 mm³ |
| Weight | <15 kg |
| Key Features | All modules standalone, Beam diameter up to 127 mm, Divergence M² & WFE |
No CAD drawings available for this product.
