Phasics

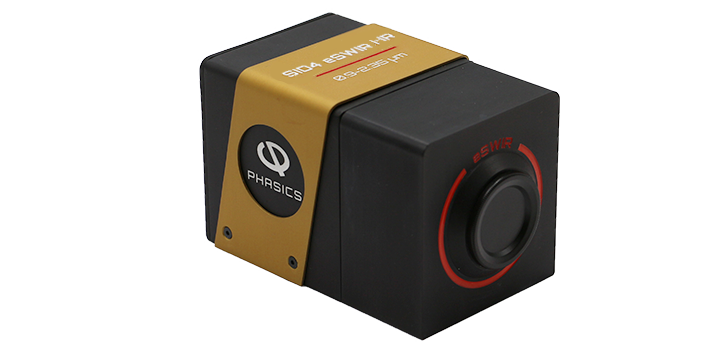

SID4 eSWIR HR Wavefront Sensor
PHA-SID4-ESWIRHRContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Phasics SID4 eSWIR HR provides high resolution wavefront sensing in the extended SWIR band (1.4–2.1 µm) with doubled spatial resolution (60 µm, 159 x 127 sampling) compared to the standard eSWIR model.
Key Features
- Extended SWIR: 1.4–2.1 µm
- High resolution (60 µm, 159 x 127 sampling)
- Large pupil and dynamic range
Applications
- High-resolution mid-IR optics testing
- eSWIR laser beam profiling
- Research-grade wavefront metrology
| Wavelength Range | 1.4 - 2.1 µm |
| Aperture Dimension | 9.54 x 7.62 mm² |
| Spatial Resolution | 60 µm |
| Phase & Intensity Sampling | 159 x 127 |
| Phase Resolution | <6 nm RMS (coherent sources) |
| Absolute Accuracy | <40 nm RMS (coherent sources) |
| Real-time Processing Frequency | 10 Hz (full resolution) |
| Interface | Giga Ethernet |
| Dimensions (W×H×L) | 90 x 115 x 120 mm³ |
| Weight | ~1 kg |
| Key Features | High resolution, Large pupil, Large dynamic range |
No CAD drawings available for this product.
