Phasics

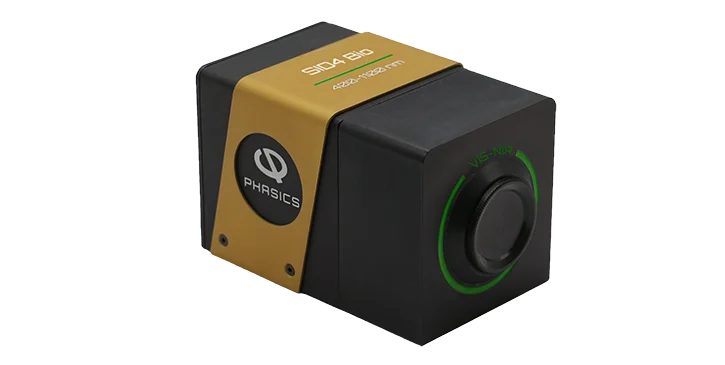

SID4 Bio Quantitative Phase Imaging Camera
PHA-SID4-BIOContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Phasics SID4 Bio is a plug-and-play quantitative phase imaging camera designed for biological microscopy. It attaches to any standard microscope via C-mount, providing label-free, non-invasive cell observation with sub-0.5 pg dry mass resolution.
Key Features
- Plug and play C-mount interface
- Label-free cell imaging
- Dry mass resolution: < 0.5 pg
- Compact and easy to integrate
Applications
- Live cell monitoring and counting
- Drug response studies
- Cell morphology analysis
- Label-free biological imaging
| Wavelength Range | 400 - 1100 nm |
| Aperture Dimension | 9.98 x 8.64 mm² |
| Spatial Resolution | Down to 0.2 µm (depends on magnification) |
| Phase & Intensity Sampling | 416 x 360 |
| Phase Resolution | 2 nm RMS |
| Frame Rate | 10 fps |
| Interface | Giga Ethernet |
| Dry Mass Resolution | <0.5 pg |
| Microscope Interface | C-mount |
| Dimensions (W×H×L) | 73 x 71 x 90 mm³ |
| Weight | ~450 g |
| Key Features | High resolution, Compact, Plug and Play |
No CAD drawings available for this product.
