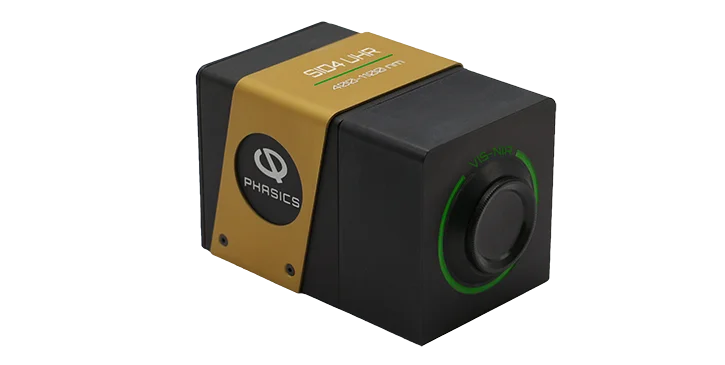

SID4 UHR Wavefront Sensor
PHA-SID4-UHRContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Phasics SID4 UHR delivers ultra high resolution wavefront sensing with an exceptionally large 15.29 mm square pupil and 554 x 554 sampling points. Designed for demanding applications requiring the highest spatial resolution across the 400–1100 nm range.
Key Features
- Ultra high resolution (554 x 554 sampling)
- Very large pupil (15.29 x 15.29 mm)
- USB 3.1 interface
- Large dynamic range
Applications
- Large aperture optics testing
- High-resolution wavefront mapping
- Precision optical metrology
| Wavelength Range | 400 - 1100 nm |
| Aperture Dimension | 15.29 x 15.29 mm² |
| Spatial Resolution | 27.6 µm |
| Phase & Intensity Sampling | 554 x 554 |
| Phase Resolution | <5 nm RMS |
| Frame Rate | 10 fps |
| Real-time Processing Frequency | 5 Hz (full resolution) |
| Interface | USB3.1 |
| Dimensions (W×H×L) | 73 x 70.5 x 93.2 mm³ |
| Weight | ~475 g |
| Key Features | High resolution, Large pupil, Large dynamic range |
