Phasics

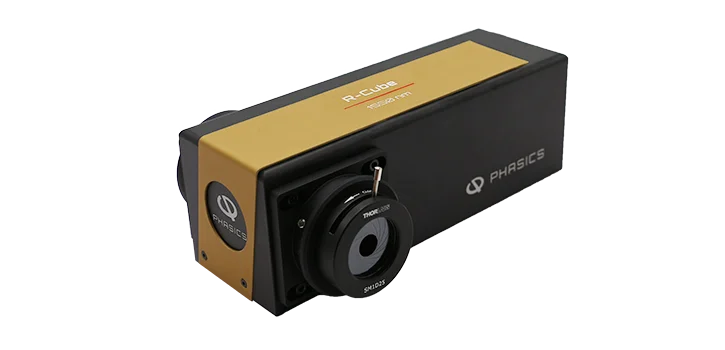

R-Cube Illumination Module
PHA-RCUBEContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Phasics R-Cube is a compact illumination module for double-pass optical testing with SID4 wavefront sensors. It provides a calibrated reference beam with λ/20 mirror quality for high-accuracy wavefront measurement in a vibration-insensitive, small footprint design.
Key Features
- Accuracy: <20 nm RMS
- Resolution: <2 nm RMS
- Insensitive to vibration
- Small footprint
- Compatible with translation and tip/tilt stages
Applications
- Double-pass optics testing
- Reflective and transmissive element qualification
- Optical shop testing
| Phase Resolution | <2 nm RMS |
| Absolute Accuracy | <20 nm RMS |
| Sensor Compatibility | SID4 UV / SID4 / SID4 HR / SID4 SWIR / SID4 SWIR HR / SID4 DWIR |
| Source Wavelength Options | 365 / 405 / 530 / 625 / 740 / 780 / 810 / 850 / 940 / 1050 / 1550 / 3900 nm |
| Reference Mirror Quality | λ/20 PV (632.8 nm) |
| Key Features | Accuracy <20nm RMS, Resolution <2nm RMS, Insensitive to vibration, Small footprint |
No CAD drawings available for this product.
Product Family: Wavefront Sensors (Phasics) (18 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Kaleo Kit Modular Wavefront Metrology Solution |
PHA-KALEO-KIT
| — | — | — | Contact |
| R-Cube Illumination Module Current |
PHA-RCUBE
| — | — | — | |
| Kalas Large Beam Analyzer |
PHA-KALAS
| — | — | — | Contact |
| Kaleo MultiWAVE Interferometer |
PHA-KALEO-MW
| 5.1 inches (130 mm) | 5.1 inches (130 mm) | 193 nm to 14 µm (custom wavelengths available) | Contact |
| Kaleo MTF Automated Measurement Station |
PHA-KALEO-MTF
| — | — | — | Contact |
| SID4 Bio Quantitative Phase Imaging Camera |
PHA-SID4-BIO
| — | — | 400 - 1100 nm | Contact |
| SID4 sC8 Quantitative Phase Imaging Camera |
PHA-SID4-SC8
| — | — | 400 - 1050 nm | Contact |
| SID4 DWIR Infrared Wavefront Sensor |
PHA-SID4-DWIR
| — | — | 3 - 5 µm and 8 - 14 µm | Contact |
| SID4 eSWIR HR Wavefront Sensor |
PHA-SID4-ESWIRHR
| — | — | 1.4 - 2.1 µm | Contact |
| SID4 eSWIR Wavefront Sensor |
PHA-SID4-ESWIR
| — | — | 1.4 - 2.1 µm | Contact |
| SID4 SWIR HR Wavefront Sensor |
PHA-SID4-SWIRHR
| — | — | 0.9 - 1.7 µm | Contact |
| SID4 SWIR Wavefront Sensor |
PHA-SID4-SWIR
| — | — | 0.9 - 1.7 µm | Contact |
| SID4 UV HR Wavefront Sensor |
PHA-SID4-UVHR
| — | — | 190 - 400 nm | Contact |
| SID4 UV Wavefront Sensor |
PHA-SID4-UV
| — | — | 190 - 400 nm | Contact |
| SID4 HR V Vacuum Wavefront Sensor |
PHA-SID4-HRV
| — | — | 400 - 1100 nm | Contact |
| SID4 UHR Wavefront Sensor |
PHA-SID4-UHR
| — | — | 400 - 1100 nm | Contact |
| SID4 HR Wavefront Sensor |
PHA-SID4-HR
| — | — | 400 - 1100 nm | Contact |
| SID4 Wavefront Sensor |
PHA-SID4
| — | — | 400 - 1100 nm | Contact |
