Phasics

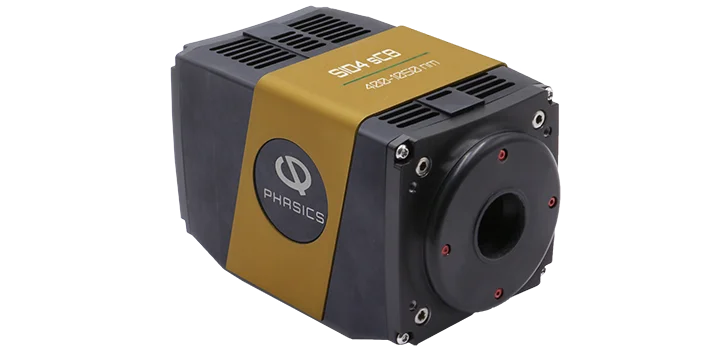

SID4 sC8 Quantitative Phase Imaging Camera
PHA-SID4-SC8Contact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Phasics SID4 sC8 is a high resolution quantitative phase imaging (QPI) camera based on sCMOS technology. With 852 x 720 sampling points over a 16.64 mm pupil, it delivers the highest spatial resolution in the SID4 family, optimized for microscopy and fluorescence imaging applications.
Key Features
- sCMOS sensor for high sensitivity
- Compatible with fluorescence imaging
- Large field of view (16.64 x 14.04 mm)
- Ultra-high resolution (19.5 µm, 852 x 720)
Applications
- Quantitative phase imaging
- Fluorescence microscopy overlay
- Live cell imaging
- Thin film metrology
| Wavelength Range | 400 - 1050 nm |
| Aperture Dimension | 16.64 x 14.04 mm² |
| Spatial Resolution | 19.5 µm |
| Phase & Intensity Sampling | 852 x 720 |
| Phase Resolution | <2 nm RMS |
| Frame Rate | 40 fps |
| Real-time Processing Frequency | 10 Hz (full resolution) |
| Interface | USB3.0 |
| Dimensions (W×H×L) | 85 x 90 x 145 mm³ |
| Weight | ~1100 g |
| Key Features | sCMOS sensor, Compatible with Fluorescence Imaging, Large FoV |
No CAD drawings available for this product.
Product Family: Wavefront Sensors (Phasics) (18 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Kaleo Kit Modular Wavefront Metrology Solution |
PHA-KALEO-KIT
| — | — | — | Contact |
| R-Cube Illumination Module |
PHA-RCUBE
| — | — | — | Contact |
| Kalas Large Beam Analyzer |
PHA-KALAS
| — | — | — | Contact |
| Kaleo MultiWAVE Interferometer |
PHA-KALEO-MW
| 5.1 inches (130 mm) | 5.1 inches (130 mm) | 193 nm to 14 µm (custom wavelengths available) | Contact |
| Kaleo MTF Automated Measurement Station |
PHA-KALEO-MTF
| — | — | — | Contact |
| SID4 Bio Quantitative Phase Imaging Camera |
PHA-SID4-BIO
| — | — | 400 - 1100 nm | Contact |
| SID4 sC8 Quantitative Phase Imaging Camera Current |
PHA-SID4-SC8
| — | — | 400 - 1050 nm | |
| SID4 DWIR Infrared Wavefront Sensor |
PHA-SID4-DWIR
| — | — | 3 - 5 µm and 8 - 14 µm | Contact |
| SID4 eSWIR HR Wavefront Sensor |
PHA-SID4-ESWIRHR
| — | — | 1.4 - 2.1 µm | Contact |
| SID4 eSWIR Wavefront Sensor |
PHA-SID4-ESWIR
| — | — | 1.4 - 2.1 µm | Contact |
| SID4 SWIR HR Wavefront Sensor |
PHA-SID4-SWIRHR
| — | — | 0.9 - 1.7 µm | Contact |
| SID4 SWIR Wavefront Sensor |
PHA-SID4-SWIR
| — | — | 0.9 - 1.7 µm | Contact |
| SID4 UV HR Wavefront Sensor |
PHA-SID4-UVHR
| — | — | 190 - 400 nm | Contact |
| SID4 UV Wavefront Sensor |
PHA-SID4-UV
| — | — | 190 - 400 nm | Contact |
| SID4 HR V Vacuum Wavefront Sensor |
PHA-SID4-HRV
| — | — | 400 - 1100 nm | Contact |
| SID4 UHR Wavefront Sensor |
PHA-SID4-UHR
| — | — | 400 - 1100 nm | Contact |
| SID4 HR Wavefront Sensor |
PHA-SID4-HR
| — | — | 400 - 1100 nm | Contact |
| SID4 Wavefront Sensor |
PHA-SID4
| — | — | 400 - 1100 nm | Contact |
