Phasics

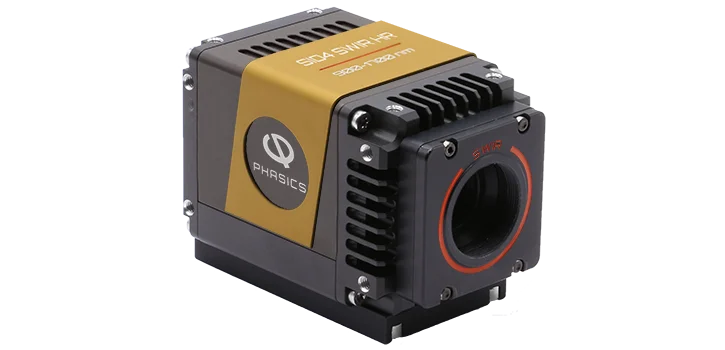

SID4 SWIR HR Wavefront Sensor
PHA-SID4-SWIRHRContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Phasics SID4 SWIR HR offers high resolution wavefront sensing in the SWIR band (0.9–1.7 µm) with 60 µm spatial resolution and 160 x 128 sampling — double the resolution of the standard SID4 SWIR. Ideal for demanding IR optical system characterization.
Key Features
- SWIR range: 0.9–1.7 µm
- High resolution (60 µm, 160 x 128 sampling)
- Achromatic, compact
Applications
- High-precision IR optics testing
- Fiber coupling optimization
- SWIR laser diagnostics
| Wavelength Range | 0.9 - 1.7 µm |
| Aperture Dimension | 9.60 x 7.68 mm² |
| Spatial Resolution | 60 µm |
| Phase & Intensity Sampling | 160 x 128 |
| Phase Resolution | <2 nm RMS |
| Absolute Accuracy | 15 nm RMS |
| Frame Rate | 30 fps |
| Real-time Processing Frequency | 7 Hz (full resolution) |
| Interface | Giga Ethernet |
| Dimensions (W×H×L) | 58 x 65 x 95 mm³ |
| Weight | ~500 g |
| Key Features | High resolution, Achromatic, Compact |
No CAD drawings available for this product.
