SID4 DWIR Infrared Wavefront Sensor
PHA-SID4-DWIRContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH

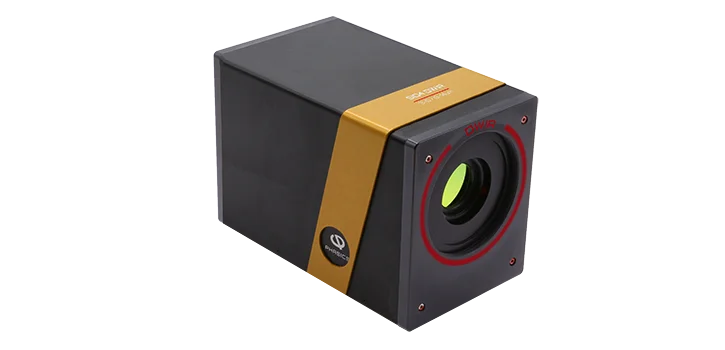

The Phasics SID4 DWIR is a dual-band infrared wavefront sensor covering both the MWIR (3–5 µm) and LWIR (8–14 µm) atmospheric windows. It enables achromatic wavefront measurement across these critical thermal infrared bands with high spatial resolution.
Key Features
- Dual IR bands: 3–5 µm and 8–14 µm
- High resolution (68 µm, 160 x 120 sampling)
- Achromatic measurement
- Large dynamic range
Applications
- Thermal imaging optics testing
- IR missile seeker optics qualification
- FLIR system characterization
- CO2 laser beam diagnostics
| Wavelength Range | 3 - 5 µm and 8 - 14 µm |
| Aperture Dimension | 10.88 x 8.16 mm² |
| Spatial Resolution | 68 µm |
| Phase & Intensity Sampling | 160 x 120 |
| Phase Resolution | <25 nm RMS |
| Absolute Accuracy | 75 nm RMS |
| Frame Rate | 50 fps |
| Real-time Processing Frequency | 10 Hz (full resolution) |
| Interface | Giga Ethernet |
| Dimensions (W×H×L) | 89 x 102 x 156 mm³ |
| Weight | ~1600 g |
| Key Features | High resolution, Achromatic, Large dynamic range |
