SID4 HR V Vacuum Wavefront Sensor
PHA-SID4-HRVContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH

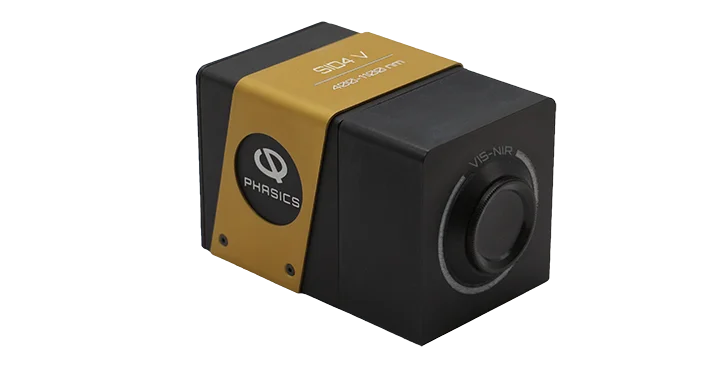

The Phasics SID4 HR V is a vacuum-compatible wavefront sensor rated to 10⁻⁶ mbar, bringing high-resolution wavefront sensing capabilities into vacuum chambers. It features the same high performance as the SID4 HR with full vacuum compatibility.
Key Features
- Vacuum compatible (10⁻⁶ mbar)
- High resolution (24 µm, 416 x 360 sampling)
- Large pupil (9.98 x 8.64 mm)
Applications
- EUV/XUV beamline characterization
- Vacuum optical system alignment
- Space optics qualification
| Wavelength Range | 400 - 1100 nm |
| Aperture Dimension | 9.98 x 8.64 mm² |
| Spatial Resolution | 24 µm |
| Phase & Intensity Sampling | 416 x 360 |
| Phase Resolution | <2 nm RMS |
| Absolute Accuracy | 20 nm RMS |
| Frame Rate | 40 fps |
| Real-time Processing Frequency | 10 Hz (full resolution) |
| Interface | Giga Ethernet |
| Vacuum Compatibility | 10⁻⁶ mbar |
| Dimensions (W×H×L) | 73 x 71 x 90 mm³ |
| Weight | ~500 g |
| Key Features | High resolution, Large pupil, Vacuum compatible |
