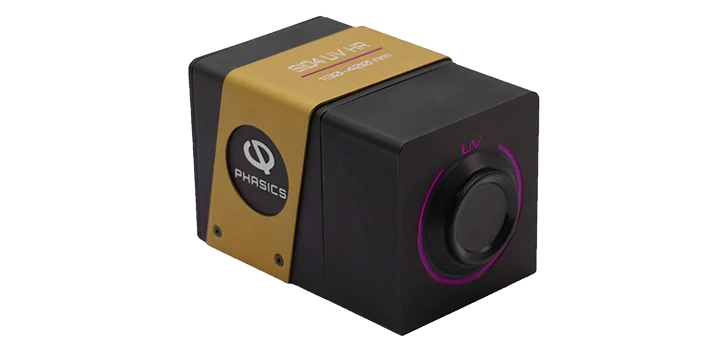

The Phasics SID4 UV HR is a high resolution UV wavefront sensor covering 190–400 nm. With 512 x 512 sampling across a large 13.3 mm pupil, it delivers exceptional spatial resolution for demanding UV optical metrology applications.
Key Features
- UV range: 190–400 nm
- High resolution (512 x 512 sampling)
- Large pupil (13.3 x 13.3 mm)
Applications
- DUV/EUV optics characterization
- Large aperture UV element testing
- Semiconductor lithography optics
| Wavelength Range | 190 - 400 nm |
| Aperture Dimension | 13.3 x 13.3 mm² |
| Spatial Resolution | 26 µm |
| Phase & Intensity Sampling | 512 x 512 |
| Phase Resolution | <2 nm RMS |
| Absolute Accuracy | 20 nm RMS |
| Frame Rate | 10 fps |
| Real-time Processing Frequency | 3 Hz (full resolution) |
| Interface | GigE |
| Dimensions (W×H×L) | 80.3 x 78.6 x 108.2 mm³ |
| Weight | ~600 g |
| Key Features | High resolution, Large pupil, Large dynamic range |
