Kaleo MTF Automated Measurement Station
PHA-KALEO-MTFContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH

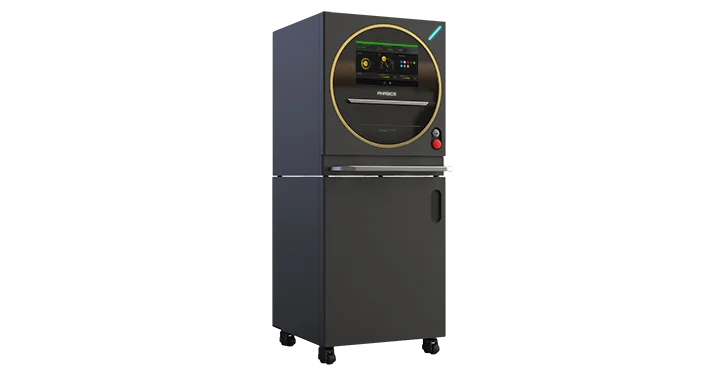

The Phasics Kaleo MTF is an automated MTF and WFE measurement station designed for high CRA (chief ray angle) lenses. It performs comprehensive optical testing including on-axis and off-axis MTF, EFL measurement, and wavefront error analysis up to ±90° field of view.
Key Features
- Automated MTF and WFE measurement
- On-axis and off-axis testing
- Very high CRA capability
- Multi-wavelength support
Applications
- Automotive camera lens qualification
- Mobile phone lens testing
- Security and surveillance lens QC
- Machine vision optics verification
| MTF On-axis Accuracy | <1%, repeatability <0.5% |
| MTF Off-axis Accuracy | <2%, repeatability <1% |
| MTF Max Frequency | 1000 lp/mm |
| EFL Accuracy | 1%, repeatability 0.5% |
| OPD Accuracy | <20 nm RMS, repeatability <5 nm RMS |
| Optical Configuration | Infinite to finite configuration |
| Entrance Pupil Diameter | Up to 8.8 mm |
| Focal Length Range | 5 to 40 mm |
| Field of View | Up to ±90° |
| Weight | 150 kg |
| Key Features | Automated MTF & WFE, On and Off-axis, Very high CRA, Multi-wavelength |
No CAD drawings available for this product.
Product Family: Wavefront Sensors (Phasics) (18 variants)
