Phasics

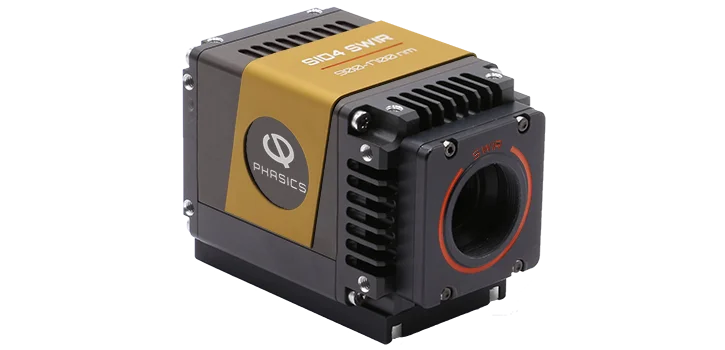

SID4 SWIR Wavefront Sensor
PHA-SID4-SWIRContact for pricing
In Stock
Contact Sales
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Phasics SID4 SWIR is a compact wavefront sensor for the short-wave infrared (0.9–1.7 µm). Based on achromatic QWLSI technology, it delivers high-resolution phase measurements with sub-2 nm RMS precision for telecom and near-IR laser applications.
Key Features
- SWIR range: 0.9–1.7 µm
- Achromatic measurement
- Compact design
Applications
- Telecom laser beam analysis
- IR optical system alignment
- SWIR component testing
| Wavelength Range | 0.9 - 1.7 µm |
| Aperture Dimension | 9.60 x 7.68 mm² |
| Spatial Resolution | 120 µm |
| Phase & Intensity Sampling | 80 x 64 |
| Phase Resolution | <2 nm RMS |
| Absolute Accuracy | 15 nm RMS |
| Frame Rate | 30 fps |
| Real-time Processing Frequency | 7 Hz (full resolution) |
| Interface | Giga Ethernet |
| Dimensions (W×H×L) | 58 x 65 x 95 mm³ |
| Weight | ~500 g |
| Key Features | High resolution, Achromatic, Compact |
No CAD drawings available for this product.
Product Family: Wavefront Sensors (Phasics) (18 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Kaleo Kit Modular Wavefront Metrology Solution |
PHA-KALEO-KIT
| — | — | — | Contact |
| R-Cube Illumination Module |
PHA-RCUBE
| — | — | — | Contact |
| Kalas Large Beam Analyzer |
PHA-KALAS
| — | — | — | Contact |
| Kaleo MultiWAVE Interferometer |
PHA-KALEO-MW
| 5.1 inches (130 mm) | 5.1 inches (130 mm) | 193 nm to 14 µm (custom wavelengths available) | Contact |
| Kaleo MTF Automated Measurement Station |
PHA-KALEO-MTF
| — | — | — | Contact |
| SID4 Bio Quantitative Phase Imaging Camera |
PHA-SID4-BIO
| — | — | 400 - 1100 nm | Contact |
| SID4 sC8 Quantitative Phase Imaging Camera |
PHA-SID4-SC8
| — | — | 400 - 1050 nm | Contact |
| SID4 DWIR Infrared Wavefront Sensor |
PHA-SID4-DWIR
| — | — | 3 - 5 µm and 8 - 14 µm | Contact |
| SID4 eSWIR HR Wavefront Sensor |
PHA-SID4-ESWIRHR
| — | — | 1.4 - 2.1 µm | Contact |
| SID4 eSWIR Wavefront Sensor |
PHA-SID4-ESWIR
| — | — | 1.4 - 2.1 µm | Contact |
| SID4 SWIR HR Wavefront Sensor |
PHA-SID4-SWIRHR
| — | — | 0.9 - 1.7 µm | Contact |
| SID4 SWIR Wavefront Sensor Current |
PHA-SID4-SWIR
| — | — | 0.9 - 1.7 µm | |
| SID4 UV HR Wavefront Sensor |
PHA-SID4-UVHR
| — | — | 190 - 400 nm | Contact |
| SID4 UV Wavefront Sensor |
PHA-SID4-UV
| — | — | 190 - 400 nm | Contact |
| SID4 HR V Vacuum Wavefront Sensor |
PHA-SID4-HRV
| — | — | 400 - 1100 nm | Contact |
| SID4 UHR Wavefront Sensor |
PHA-SID4-UHR
| — | — | 400 - 1100 nm | Contact |
| SID4 HR Wavefront Sensor |
PHA-SID4-HR
| — | — | 400 - 1100 nm | Contact |
| SID4 Wavefront Sensor |
PHA-SID4
| — | — | 400 - 1100 nm | Contact |
