What wavelength range does 177nm Laser — Narrow Linewidth CW Laser support?

177nm Laser — Narrow Linewidth CW Laser operates at a center wavelength of 177.0 nm. The supported wavelength range is 177.0–177.0 nm.

What is the average power of 177nm Laser — Narrow Linewidth CW Laser?

177nm Laser — Narrow Linewidth CW Laser provides an average power of 0.001 W.

Is 177nm Laser — Narrow Linewidth CW Laser available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

PreciLasers

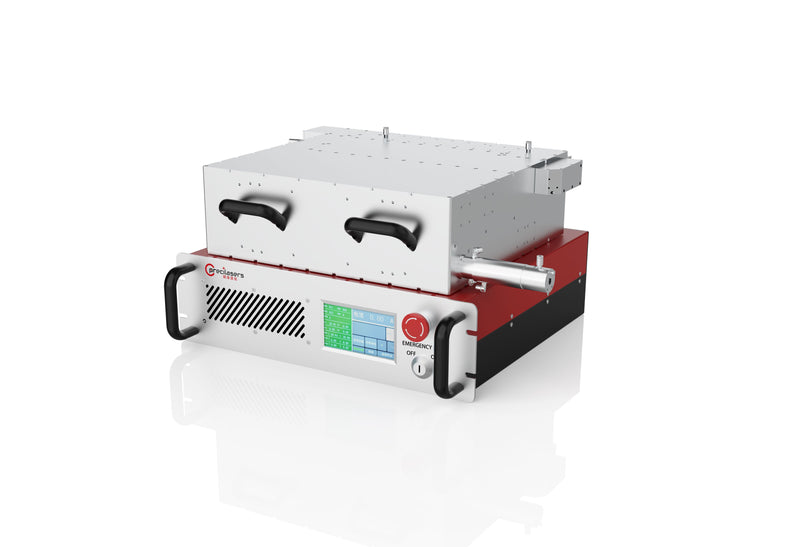

177nm Laser — Narrow Linewidth CW Laser

Name: 177nm Laser — Narrow Linewidth CW Laser
Brand: PreciLasers
SKU: PL-NL-177
Availability: InStock

PL-NL-177

Contact for pricing

In Stock

Key Specifications

Wavelength 177.0nm

Avg Power 0.001W

Contact Sales

Design Tools

Watt \u2194 dBm Converter Convert between optical power units Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

RoHS REACH

177nm Laser Based on single-frequency seed lasers, fiber laser amplification, and high-efficiency frequency conversion technology, Precilasers can achieve narrow-linewidth laser output with a wavelength of 177 nm. It also features characteristics such as high power, low noise, and excellent beam quality.

Features

Narrow Linewidth Excellent Beam
Quality Never Mode
Low

Models	FL-SF-X-Y-CW
Wavelength	177nm
Operation Mode	CW
Output Power	>1mW
Linewidth (100 µs Integration Time)	<100kHz
Output Mode	Free Space Output
Power Stability	<1%@3hrs, RMS
Beam Quality	M2<1.5
PER	>20dB,Linear
Cooling	Water Cooling
Temperature	15-30°C
Communication	RS422
Power Supply	100-240V, 50/60Hz

Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.

Specification Sheet PDF — Download

No CAD drawings available for this product.

Product Family: UV Lasers (177-400nm) (34 variants)

Product ▴▾	SKU	Size ▴▾	Clear Aperture ▴▾	Operating Wavelength ▴▾
509nm (0.35nmTuning range)		—	—	—	Contact
355nm Broadband laser		—	—	—	Contact
355nm Narrow linewidth laser(Single-pass frequency tripling)		—	—	—	Contact
266nm Narrow linewidth tunable laser		—	—	—	Contact
325nm Narrow linewidth laser		—	—	—	Contact
234nm Narrow linewidth laser		—	—	—	Contact
257nm Narrow linewidth laser		—	—	—	Contact
190nm Narrow linewidth laser		—	—	—	Contact
399nm Narrow linewidth laser		—	—	—	Contact
369nm Narrow linewidth laser		—	—	—	Contact
302nm Narrow linewidth laser		—	—	—	Contact
317nm Narrow linewidth laser		—	—	—	Contact
318nm Narrow linewidth laser		—	—	—	Contact
297nm Narrow linewidth laser		—	—	—	Contact
355nm Narrow linewidth laser (Low power)		—	—	—	Contact
355nm Narrow linewidth laser (High power)		—	—	—	Contact
266nm Laser		—	—	—	Contact
313nm Laser		—	—	—	Contact
390nm Laser		—	—	—	Contact
257nm Laser		—	—	—	Contact
313nm Narrow linewidth laser		—	—	—	Contact
390nm Narrow linewidth laser		—	—	—	Contact
355nm Narrow linewidth laser		—	—	—	Contact
313nm-325nm Narrow linewidth laser		—	—	—	Contact
266nm Narrow linewidth laser		—	—	—	Contact
382-405nm Laser — Narrow Linewidth CW Laser	`PL-NL-382-405`	—	—	—	Contact
305-383nm Laser — Narrow Linewidth CW Laser	`PL-NL-305-383`	—	—	—	Contact
300-305nm Laser — Narrow Linewidth CW Laser	`PL-NL-300-305`	—	—	—	Contact
284-299nm Laser — Narrow Linewidth CW Laser	`PL-NL-284-299`	—	—	—	Contact
249-283.5nm Laser — Narrow Linewidth CW Laser	`PL-NL-249-283.5`	—	—	—	Contact
220-248nm Laser — Narrow Linewidth CW Laser	`PL-NL-220-248`	—	—	—	Contact
205-220nm Laser — Narrow Linewidth CW Laser	`PL-NL-205-220`	—	—	—	Contact
190nm Laser — Narrow Linewidth CW Laser	`PL-NL-190`	—	—	—	Contact
177nm Laser — Narrow Linewidth CW Laser Current	`PL-NL-177`	—	—	—
