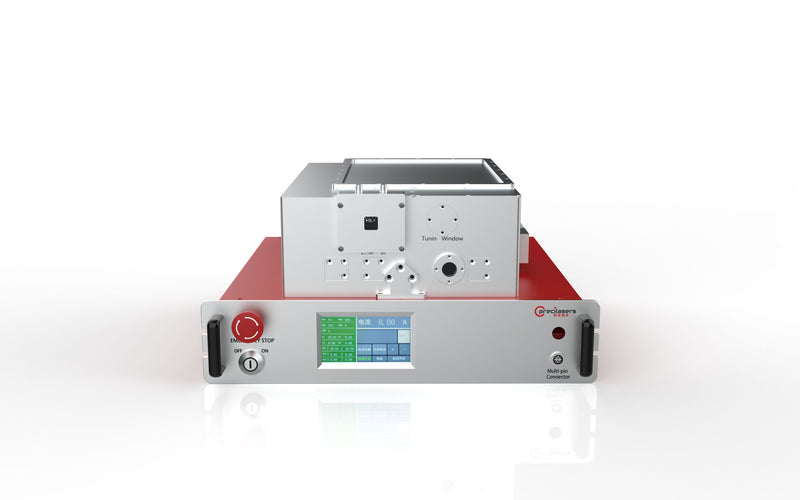

509nm (0.35nmTuning range) Based on high-power, low-noise ytterbium-doped fiber amplification and frequency doubling technology, Precilasers can achieve high-power, narrow-linewidth laser output at 509nm.
Features
- Narrow Linewidth Low Intensity
- Noise High Power Excellent
- Beam Quality Never Mode
- Resistant to High and
- Low Temperature and Vibration
- Working Environment
Applications
- Optical Lattices
- Atomic Cooling and Trapping
- Solid
- Lasers
- Dye Lasers
- Laser Medical Treatment Solar
- Cell Processing
| Models | FL-SF-X-Y-CW (1) |
|---|---|
| Wavelength Tuning Range | 509nm |
| Operation Mode | CW |
| Output Power | >0.5W (2) / >1W / >2.5W / >30W |
| Mode-hop-free Tuning Range | >10GHz |
| Output Mode | Spatial collimation output, diameter0.6-1.0mm |
| Linewidth (4) (100us integration time) | <200kHz |
| Polarization Extinction Ratio | >20dB |
| Power Stability (3 Hours RMS) | <0.75% |
| Beam Quality | M2<1.1 |
| PZT Fast Tuning Range | >3GHz |
| PZT Fast Tuning Bandwidth | >5kHz |
| Current Tuning Bandwidth | >1MHz |
| Current Tuning Range | >1GHz |
| RIN Relative Intensity Noise (10Hz-100MHz, RMS) | <0.06% |
| Cooling | Air Cooling/Water Cooling / Water Cooling |
| Temperature | 15-30°C (Air Cooling) / 15-35°C (Water Cooling) |
| Communication | RS422 |
| Power Supply | 100-240V, 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
