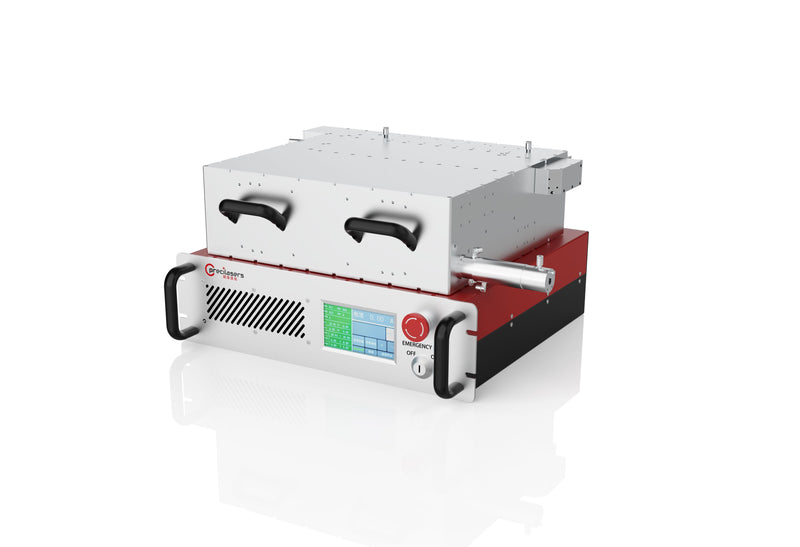

234nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
234nm Narrow linewidth laser Based on high-power, low-noise thulium-doped fiber amplification and 8th harmonic generation technology, Precilasers can achieve high-power, narrow-linewidth laser output at 234nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Center Wavelength | 234nm |
| Operation Mode | CW |
| Output Power | >0.01W / >0.05W / >0.1W |
| Thermal Tuning Range | >0.125nm, Never Mode-hop |
| Output Mode | Free Space Output |
| Beam Diameter | 1.0-1.2mm |
| Linewidth (2) (100us) | <80kHz |
| PER | >20dB |
| Power Stability | <1%@3hours, RMS |
| Beam Quality | M 2 <1.5 |
| Fast Frequency Tuning Range | >3GHz |
| Fast Frequency Tuning Bandwidth | >5kHz |
| AOM Tuning Range (Optional) | >±5MHz |
| AOM Tuning Bandwidth (Optional) | >500kHz |
| Cooling | Air Cooling/Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
