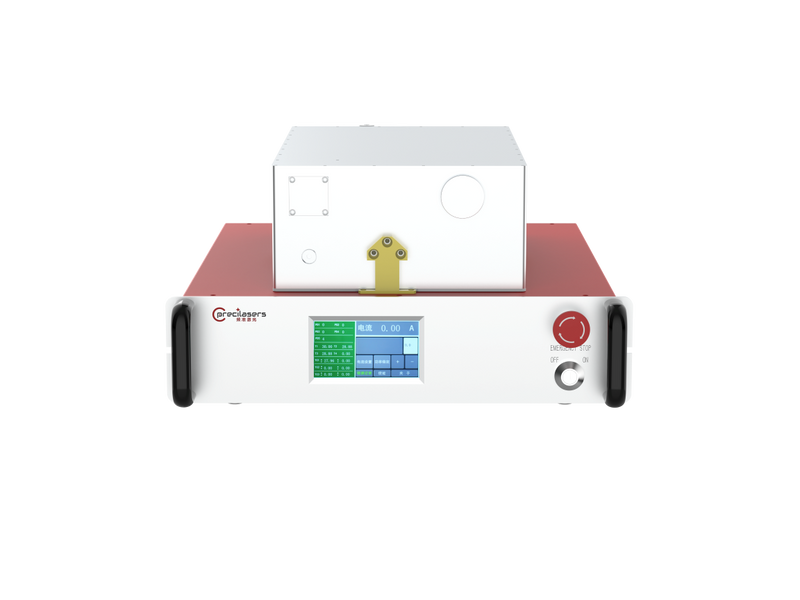

355nm Broadband laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
355nm Broadband laser Based on non-single-frequency seed laser, fiber laser amplification and nonlinear frequency conversion technology, Precilasers can provide 355nm laser with a maximum output of 500mW, high frequency stability, long life and excellent beam quality. This product has the characteristics of narrow Linewidth, linear polarization and long life, and can be used for scientific research and advanced industrial applications.
Features
- Narrow Linewidth Resistant to
- High Temperature and Vibration
- Working Environment Excellent Beam
- Quality Never Mode
| Models | FL-NSF-355-X-CW |
|---|---|
| Center Wavelength | 355.00nm |
| Linewidth (100 us integration) | 50-55GHz |
| Operation Mode | CW |
| Output Power | >500mW |
| Beam Waist Diameter | 1±0.15 mm |
| Beam Waist Location Relative to Output Window (m) | Output Window within ±0.5m |
| Beam Divergence (Full Angle) | <0.7mrad |
| Beam Ellipticity | >90% |
| Pointing Stability (µrad) | <10µrad@3h |
| Beam Quality | TEM00, M²<1.2 |
| Polarization | Linear, Vertical±3°, >20dB |
| Power Stability | <0.75% @3hours, RMS |
| Relative Intensity Noise | <0.2%(RMS, 10Hz-10MHz integration) |
| Cooling | Water Cooling |
| Cold Start | <2 hours |
| From Standby | <15 minutes |
| Laser Controller Dimensions | ≤483mm x 520mm x 132mm |
| Laser Head Dimensions | ≤475mm x285mm x 141mm |
| Chiller Dimensions | ≤58cm x 29cm x 52cm |
| Laser Head Weight | ≤20kg |
| Laser Controller Weight | ≤20kg |
| Chiller Weight | ≤25kg |
| Cable Length between Controller and Head | Non-detachable cable length > 7 meters (customizable) |
| Temperature (No condensation conditions) | 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Power Consumption | <1200W |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
