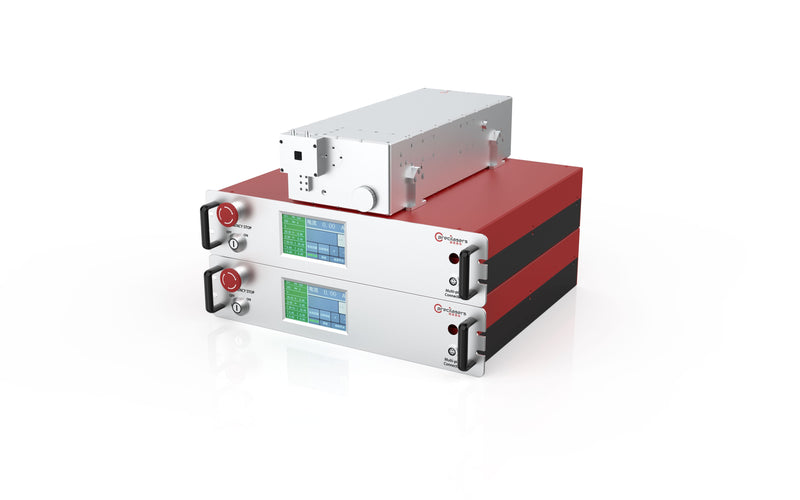

305-383nm Laser — Narrow Linewidth CW Laser
PL-NL-305-383Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
4.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
305-383nm Laser Based on high-power, low-noise fiber amplification, as well as sum frequency and frequency doubling technologies, it enables high-power, narrow-linewidth laser output at any central wavelength within the range of 305-383 nm.
Features
- Narrow Linewidth
- Low Intensity Noise High
- Power Active Power Stability
- Excellent Beam Quality
- Never Mode
- Resistant to high
Applications
- Interference Exposure Wafer Metrology
- Precision Measurement
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength Optional Range | 305-383nm |
| Frequently Used Wavelengths | 355nm |
| Operating Mode | CW |
| Output Power | >0.3W / >1W / >2W / >4W |
| Monitor Optical Output Power | >3mW |
| Tuning Range (Temperature) | >0.12nm, Continuous without mode jumping |
| Output Mode | Spatial collimation output, diameter 0.7-1.0mm |
| Linewidth (2) (100 us integration) | <40kHz |
| Polarization Extinction Ratio | >20dB |
| Power Stability (3 Hours RMS) | <0.75% |
| Beam Quality | M2<1.3 |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >5kHz |
| Current Tuning Range | >1GHz |
| Current Tuning Bandwidth | >1MHz |
| Cooling | Air Cooling/Water cooling |
| Power Supply | 100V-240V, 50/60Hz |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
