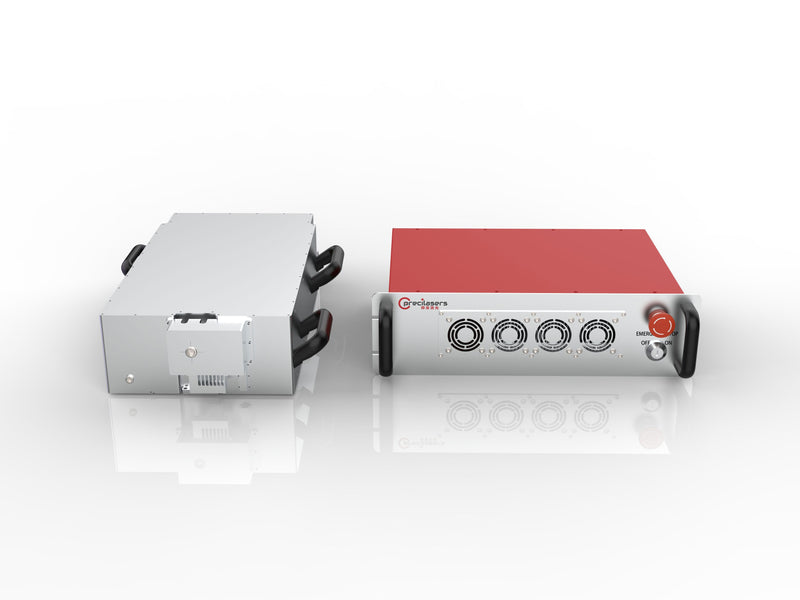

266nm Laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
266nm Laser Based on single-frequency seed laser, fiber laser amplification and high-efficiency frequency conversion technology, Precilasers can provide narrow linewidth lasers of 266nm with a maximum output of 1W, high frequency stability, long lifetime and excellent beam quality.
Features
- Long Life High Power
- Narrow Linewidth Excellent Beam
- Quality Never Mode
| Models | FL-SF-266-X-CW |
|---|---|
| Center Wavelength | 266.00nm |
| Linewidth(100 us integration) | <50kHz |
| Operation Mode | Continuous |
| Output Power | >30mW / >100mW / >500mW / >1W/2W |
| Beam Waist Diameter | 1±0.15 mm |
| Beam Waist Location Relative to Output Window (m) | Front bezel ±5m of Rayleigh Range |
| Beam Divergence (Full Angle) | <0.5mrad |
| Ellipticity | 0.9-1.1 |
| Pointing Stability (µrad) | <50urad @30min, RMS |
| Beam Quality | TEM00, M²<1.3 |
| Polarization | Linear, Vertical ±3°, >20dB |
| Power Stability | <1% @3hours, RMS |
| Relative Intensity Noise | <0.2%(RMS, 10Hz-10MHz integration) |
| Cooling | Air Cooling/Water cooling / Water cooling |
| Cold Start | <2 hours |
| From Standby | <15minutes |
| Laser Head Dimensions | ≤460mm x 420mm x 133mm (30mW,100mW) / ≤483mm x 304mm x 133mm (500mW,1W) |
| Laser Controller Dimensions | ≤390mm x 310mm x 130mm (30mW,100mW) / ≤300mm x 530mm x 139mm (500mW,1W) |
| Chiller Dimensions | ≤58cm x 29cm x 52cm |
| Laser Head Weight | ≤20kg / ≤25kg |
| Laser Controller Weight | ≤25kg |
| Chiller Weight | ≤25kg |
| Cable Length between Controller and Head | Non-detachable optical fiber length>1.5m / Detachable cable length>5m |
| Temperature (No condensation conditions) | 15-30 °C (Air Cooling) / 15-35 °C (Water cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Power Consumption | <120W / <120W / <130W / <140W |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
