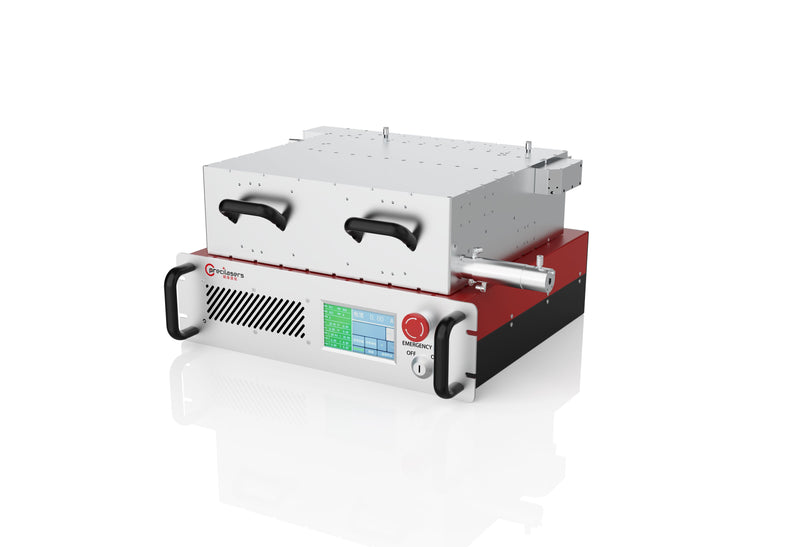

205-220nm Laser — Narrow Linewidth CW Laser
PL-NL-205-220Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
0.1W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
205-220nm Laser Based on high-power, low-noise fiber lasers amplification and frequency quadrupling technology, Precilasers can provide high-power, narrow linewidth laser output with a wavelength ranging from 205 to 220 nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength Range | 205-220nm |
| Typical Wavelength | 220nm |
| Operation Mode | CW |
| Output Power | >5mW / >10mW / >100mW |
| Thermal Tuning Range | >300GHz, Never Mode-hop |
| Output Mode | Free Space Output |
| Beam Diameter | 0.7-1.0mm |
| Linewidth (2) (100us) | <80kHz |
| PER | >20dB |
| Power Stability | <0.75% |
| Beam Quality | M 2 <1.3 |
| PZT Frequency Tuning Range | >3GHz |
| PZT Frequency Tuning Bandwidth | >5kHz |
| Fast Frequency Tuning Range | >250MHz |
| Fast Frequency Tuning Bandwidth | >1MHz |
| AOM Tuning Range (Optional) | >±5MHz |
| AOM Tuning Bandwidth (Optional) | >500kHz |
| Cooling | Air Cooling/Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
