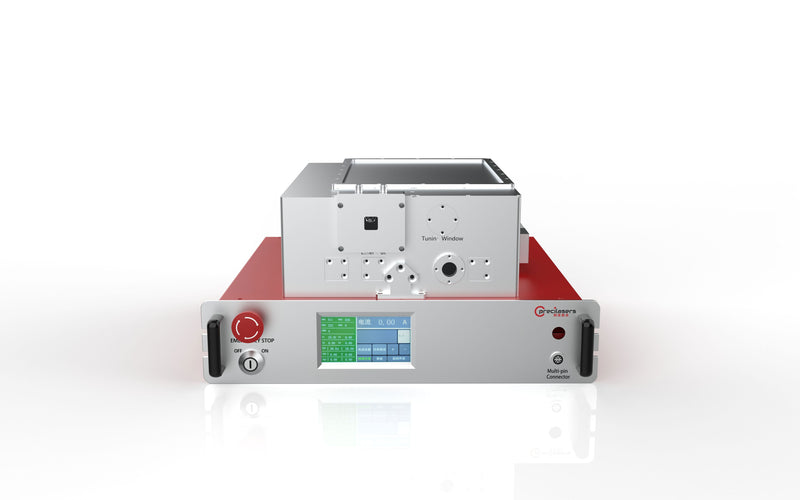

284-299nm Laser — Narrow Linewidth CW Laser
PL-NL-284-299Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
4.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
284-299nm Laser Based on single frequency seed laser, fiber laser amplification and high efficiency frequency conversion technology, Precilasers can provide narrow linewidth lasers with a maximum output of 4W, high frequency stability, long lifetime and excellent beam quality.
Features
- Narrow Linewidth High Power
- Excellent Beam Quality Never
- Mode
| Models | FL-SF-XX-YY (1) -CW |
|---|---|
| Typical Wavelength | 297nm |
| Output Power | 0.1W / 0.5W / 1W / 2W / 3W / 4W(coming soon) |
| Linewidth (2) (100 us integration) | <60kHz |
| Monitor optical output power @594nm/604nm | >3mW |
| Tuning range (Never mode-hop) | >300GHz |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >1kHz |
| Current Tuning Range | >500MHz |
| Current Tuning Bandwidth | >1MHz |
| Power Stability (3 Hours RMS) | <1% |
| Output Mode | Spatial collimation output, diameter0.8mm-1.2mm |
| Polarization Extinction Ratio | >20dB, Linear, Vertical |
| Beam Quality | TEM00, M²<1.3 |
| Cooling | Air cooling / Water cooling |
| Wide Tuning Option | By replacing the wide-tuning seed laser, ±0.5nm@297nm wide tuning is achieved |
| Cooling | Air cooling / Water cooling |
| Temperature | 15-30°C |
| Power Supply | 100V-220V, AC, 50Hz |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
