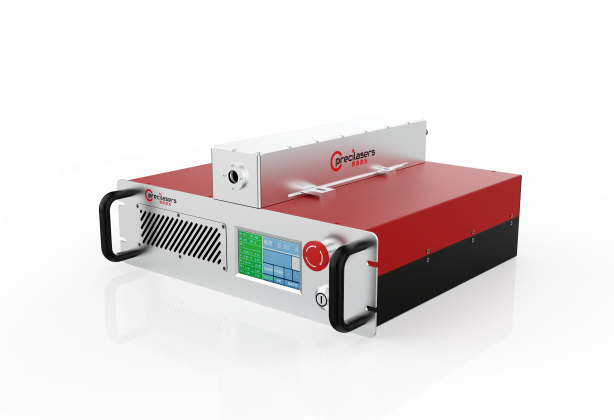

399nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
399nm Narrow linewidth laser Based on high-power, low-noise Er-doped fiber lasers amplifier and frequency quadrupling technology, Precilasers can provide high-power, narrow linewidth laser output from 385 to 399 nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
Applications
- Lithium Ion
- Calcium Ion
- Strontium Atom Cooling Quantum
- Simulation Laser Spectroscopy Medicine
- And Biophotonics Electromagnetically Induced
- Transparency
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength Range | 385-399nm |
| Typical Wavelength | 390nm, 399nm |
| Output Mode | CW |
| Output Power | >0.04W |
| Seed Laser Type | FECL / Fiber DFB |
| Tuning Range (Temperature) | >30GHz, Never Mode-hop / >0.25nm, Never Mode-hop |
| Output Mode | Free Space Collimated Output, Diameter 0.7-1.0mm |
| Linewidth (2) (100us) | <40kHz / <10kHz |
| PER | >20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | M2<1.1 |
| Fast Frequency Tuning Range | >1GHz / >3GHz |
| Fast Frequency Tuning Bandwidth | >1MHz / >5kHz |
| RIN (10Hz-100MHz, RMS) | <0.2% |
| Cooling | Air Cooling/Water Cooling |
| Power Supply | 100-240V , 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
