PreciLasers

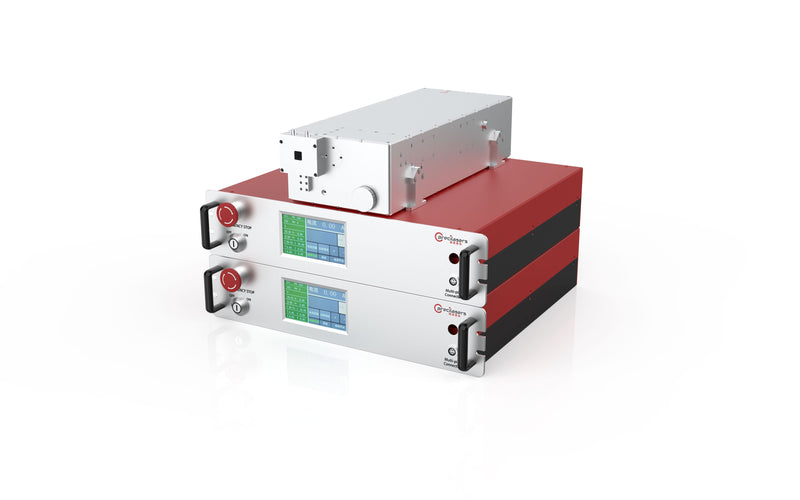

300-305nm Laser — Narrow Linewidth CW Laser
PL-NL-300-305Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
4.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
300-305nm Laser Based on high-power, low-noise fiber amplification, as well as sum frequency and frequency doubling technologies, it enables high-power, narrow-linewidth laser output at any central wavelength within the range of 300-305 nm.
Features
- Narrow Linewidth
- Low Intensity Noise High
- Power Active Power Stability
- Excellent Beam Quality
- Mode Hopping Free Resistant
Applications
- Interference Exposure Wafer Metrology
- Precision Measurement
| Models | FL-SF-XX-YY (1) -CW |
|---|---|
| Typical Wavelength | 302nm |
| Output Power | 0.1W / 0.5W / 1W / 2W / 4W(coming soon) |
| Linewidth (2) (100 us integration) | <60kHz |
| Monitor optical output power @604nm | >5mW |
| Tuning range (Never mode-hop) | >300GHz |
| PZT Tuning Range | >6GHz |
| PZT Tuning Bandwidth | >5kHz |
| Current Tuning Range | >1GHz |
| Current Tuning Bandwidth | >1MHz |
| Power Stability (3 Hours RMS) | <1% |
| Output Mode | Spatial collimation output, diameter 0.8mm-1.2mm |
| Polarization Extinction Ratio | >20dB, Linear, Vertical |
| Beam Quality | TEM00, M²<1.3 |
| Cooling | Air cooling / Water cooling |
| Wide Tuning Option | By replacing the wide-tuning seed laser, ±0.5nm@302nm wide tuning is achieved |
| Cooling | Air cooling / Water cooling |
| Temperature | 15-30°C |
| Power Supply | 100V-220V, AC, 50Hz |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
