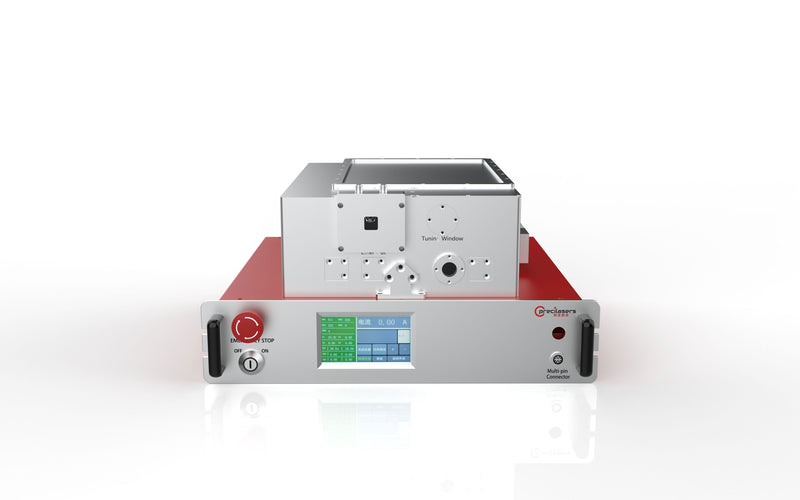

257nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
257nm Narrow linewidth laser Based on ytterbium-doped fiber DFB seed lasers and ytterbium-doped fiber amplifiers, Precilasers can provide high-performance 257nm laser output.
| Models | FL-SF-X-Y-CW |
|---|---|
| Wavelength | 257nm |
| Linewidth (100 us integration) | <40kHz |
| Operation Mode | CW |
| Output Power | >30mW / >100mW / >500mW / > 1W |
| Output Mode | Collimated Output |
| PZT Frequency Tuning Bandwidth | >5kHz |
| PZT Frequency Tuning Range | >3GHz |
| AOM Tuning Bandwidth (Optional) | >500kHz |
| AOM Tuning Range (Optional) | >±5MHz |
| Beam Diameter | 0.8±0.2 mm |
| Beam Quality | TEM00, M²<1.2 |
| PER | linear, >20dB |
| Power Stability | <0.75% @3hours, RMS |
| Cooling | Air Cooling/Water Cooling |
| Cable Length between Controller and Head | >1.5m |
| Temperature | 15-30 °C / 15-35 °C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
