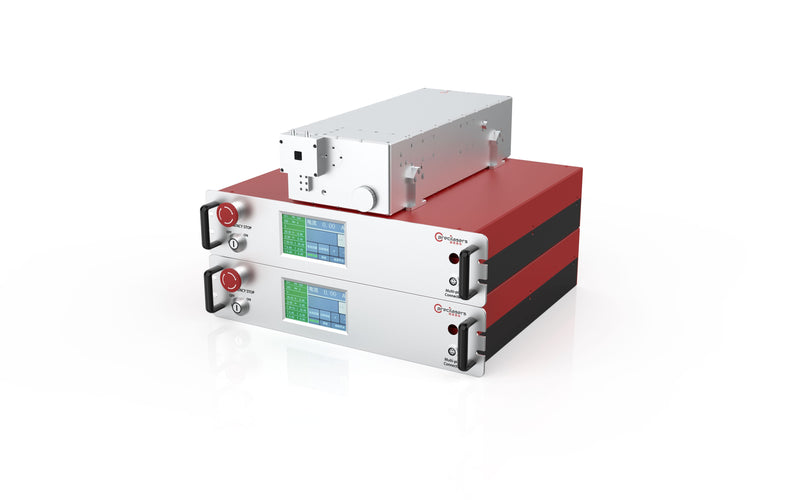

302nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
302nm Narrow linewidth laser Based on single frequency seed laser, fiber laser amplification and high efficiency frequency conversion technology, Precilasers can provide narrow linewidth lasers with a maximum output of 1W, high frequency stability, long lifetime and excellent beam quality.
Features
- Narrow Linewidth High Power
- Excellent Beam Quality Never
- Mode
| Models | FL-SF-XX-YY (1) -CW |
|---|---|
| Typical Wavelength | 297nm, 302nm |
| Output Power | 0.1W / 0.5W / 1W / 3W |
| Linewidth (2) (100 us integration) | <60kHz |
| Monitor optical output power @594nm/604nm | >3mW |
| Tuning range (Never mode-hop) | >300GHz |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >5kHz |
| Current Tuning Range | >500MHz |
| Current Tuning Bandwidth | >1MHz |
| Power Stability (3 Hours RMS) | <1% |
| Output Mode | Spatial collimation output, diameter0.8mm-1.2mm |
| Polarization Extinction Ratio | >20dB, Linear, Vertical |
| Beam Quality | TEM00, M²<1.3 |
| Cooling | Air Cooling / Water cooling |
| Wide Tuning Option | By replacing the wide-tuning seed laser, ±0.5nm@297nm wide tuning is achieved |
| Cooling | Air Cooling / Water cooling |
| Temperature | 15-30°C |
| Power Supply | 100V-220V, AC, 50Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
