PreciLasers

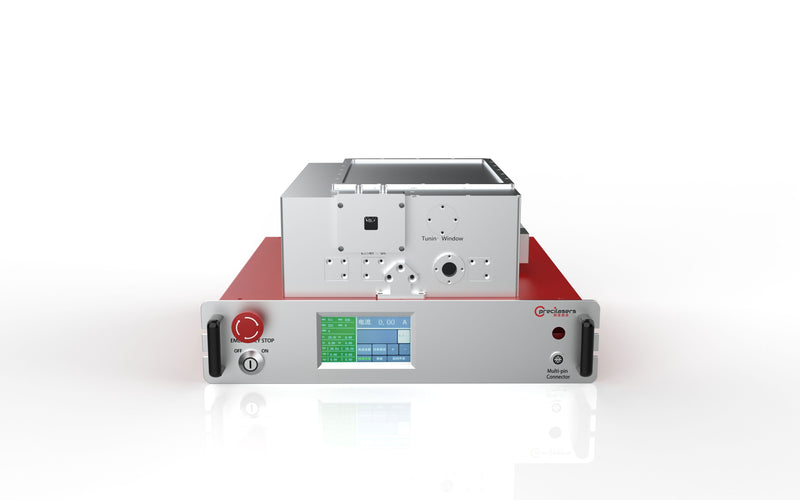

382-405nm Laser — Narrow Linewidth CW Laser
PL-NL-382-405Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
0.04W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
382-405nm Laser Based on high-power, low-noise fiber amplification, as well as sum frequency and frequency doubling technologies, it enables high-power, narrow-linewidth laser output at any central wavelength within the range of 382-405 nm.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Never Mode
- High Temperature And Vibration
- Resistance
Applications
- Lithium Ion Calcium Ion
- Strontium Atom Cooling Quantum
- Simulation Laser Spectroscopy Medicine
- And Biophotonics Electromagnetically Induced
- Transparency
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength Range | 382-385nm / 385-392.5nm / 392.5-405nm |
| Typical Wavelength | 385nm / 390nm / 399nm |
| Seed Laser Type | Fiber DFB Seed Laser (1530-1596nm) / Fixed External Cavity Diode Laser (FECL,1530-1596nm) |
| Output Power | >0.04W/2W/4W / >0.04W/2W/4W/8W / >0.04W/2W |
| Thermal Tuning Range | >0.25nm, Never Mode-hop / >30GHz, Never Mode-hop |
| Output Mode | Free Space Output |
| Beam Diameter (2) | 0.7-1.0mm |
| Power Tuning Range | 10-100% |
| Beam Pointing Stability | <50µrad |
| Linewidth (3) (100us) | <4kHz/10kHz / <20kHz/40kHz |
| PER | linear,>20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | TEM00, M2<1.2 |
| Fast Frequency Tuning Range | >3GHz / >1GHz |
| Fast Frequency Tuning Bandwidth | >5kHz,PZT Tuning / >1MHz,Current Tuning |
| AOM Tuning Range(Optional) | >±5MHz / / |
| AOM Tuning Bandwidth(Optional) | >500kHz / / |
| RIN | <0.3% (RMS,10Hz-100MHz) |
| Cooling | Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
