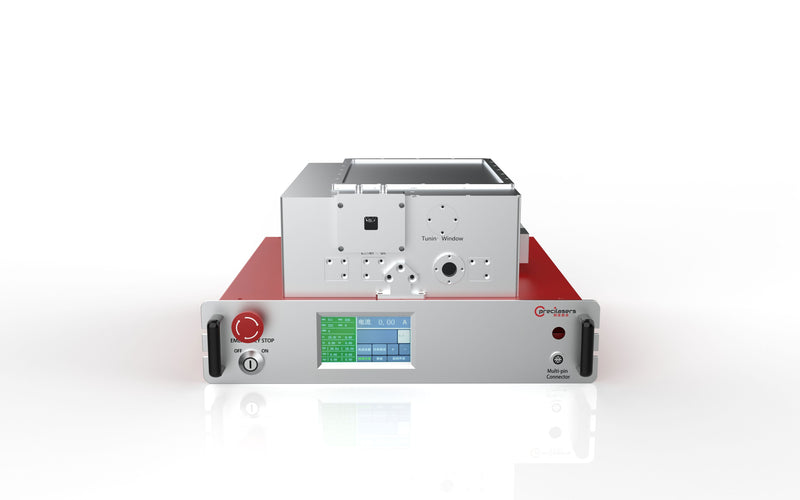

266nm Narrow linewidth tunable laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
266nm Narrow linewidth tunable laser Based on Ytterbium-doped fiber DFB seed laser and Ytterbium-doped fiber amplifier, Precilasers can provide high performance 266nm laser output.
Features
- Long Life Narrow Linewidth
- Excellent Beam Quality Never
- Mode
| Models | FL-SF-X-Y-CW (1) |
|---|---|
| Center Wavelength | 266nm |
| Linewidth (100 us integration) | <40kHz |
| Operation Mode | Continuous |
| Output Power | >30mW / >100mW / >500mW / > 1W |
| Output Mode | Collimated output |
| PZT Tuning Bandwidth | >5kHz |
| PZT Tuning Range | >3GHz |
| AOM Fast Tuning Bandwidth (option) | >500kHz |
| AOM Fast Tuning Range (option) | >±5MHz |
| Beam Waist Diameter | 0.8±0.2 mm |
| Beam Quality | TEM00, M²<1.2 |
| Polarization | Linear, Vertica,>20dB |
| Power Stability | <0.75% @3hours, RMS |
| Cooling | Air Cooling/Water cooling |
| Cable Length between Controller and Head | >1.5m |
| Temperature | 15-30 °C / 15-35 °C |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Power Consumption | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
