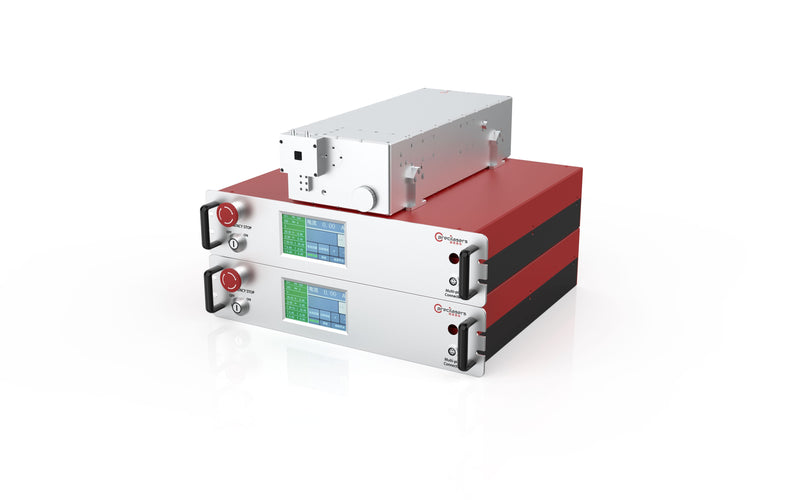

318nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
318nm Narrow linewidth laser Based on a single-frequency seed laser, fiber laser amplification, and high-efficiency frequency conversion technology, Precilasers can provide 308-324nm narrow-linewidth lasers with a maximum output power of 1W. These lasers also feature high frequency stability, long lifespan, and excellent beam quality.
Features
- Narrow Linewidth High Power
- Excellent Beam Quality Never
- Mode
| Models | FL-SF-XX-YY (1) -CW |
|---|---|
| Selectable Center Wavelength | 308nm, 313nm |
| Output Power | 0.1W / 0.5W / 1W |
| Linewidth (2) (100 us integration) | <60kHz |
| Monitor Light Output Power@594nm/604nm | >3mW |
| Tuning Range (Continuous Mode-Hop-Free) | >300GHz |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >5kHz |
| Current Tuning Range | >500MHz |
| Current Tuning Bandwidth | >1MHz |
| Power Stability | <1%@3hours, RMS |
| Output Mode | Spatial Collimated Output, 0.8mm-1.2mm Diameter |
| Polarization Extinction Ratio | >20dB, Linear Polarization |
| Beam Quality | TEM00, M²<1.3 |
| Cooling | Air Cooling / Water Cooling |
| Wide Tuning Option | Wide tuning of ±0.5nm@308nm achieved by replacing with a wide-tuning seed laser |
| Cooling | Air Cooling / Water Cooling |
| Operating Temperature | 15-30°C (under non-condensing conditions) / 15-35°C (under non-condensing conditions) |
| Power Supply | 100V-240V, AC, 50/60Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
