Five-Axis Stainless Steel Fiber Alignment Stages and Accessories CAP-2

Name: Five-Axis Stainless Steel Fiber Alignment Stages and Accessories CAP-2
Brand: WaveQuanta
SKU: CAP-2
Price: 128.78 SGD
Availability: InStock

CAP-2

$128.78

In Stock

Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more

View all 49 calculators →

RoHS REACH

The Five-Axis Stainless Steel Fiber Alignment Stages and Accessories CAP-2 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.

✔ In Stock — Ships Today

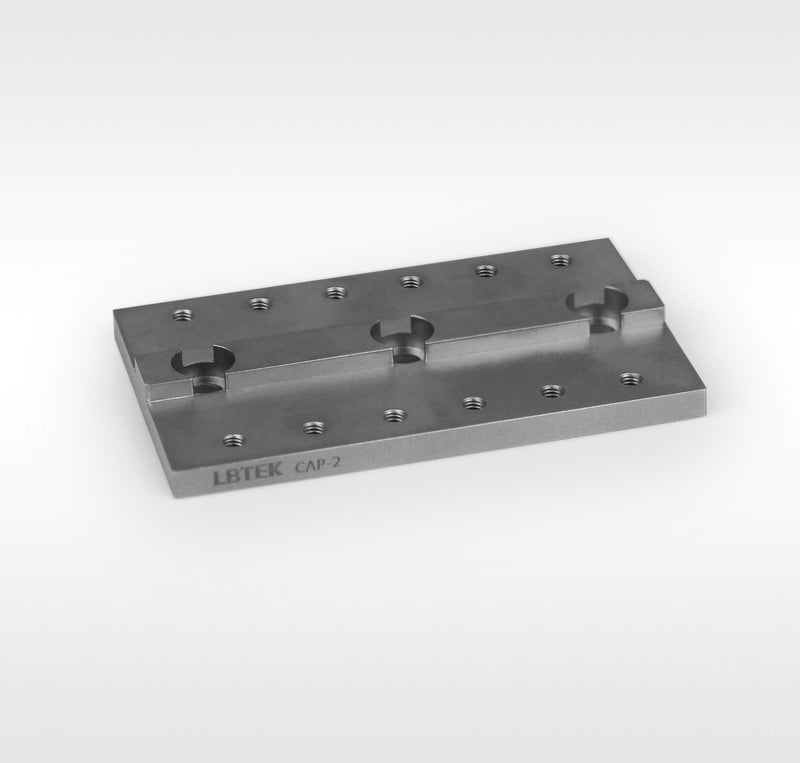

The CAP-2 adapter plate provided by LBTEK features a flat key on the upper part for connecting with the FSV1 series fiber optic clamps. It is designed for use with the five-axis stainless steel fiber optic translation stages FCSS-L5 or FCSS-R5 in conjunction with fiber optic clamps. The adapter plate includes 12 M3 threaded holes for mounting fiber optic clamps and can be secured using the included M4 screws.

Key Features

With guide flat key, suitable for FSV1 series fiber optic clamps
Includes 3 M4 bolts

Application

Five-axis stainless steel fiber optic translation stage with FSV1 fiber optic clamp

Lead Time

In Stock

Lead Time: 0.0 week0.0s

No CAD drawings available for this product.
