Six-Axis Manual Positioning Stages L90A65S-L6

✔ In Stock — Ships Today

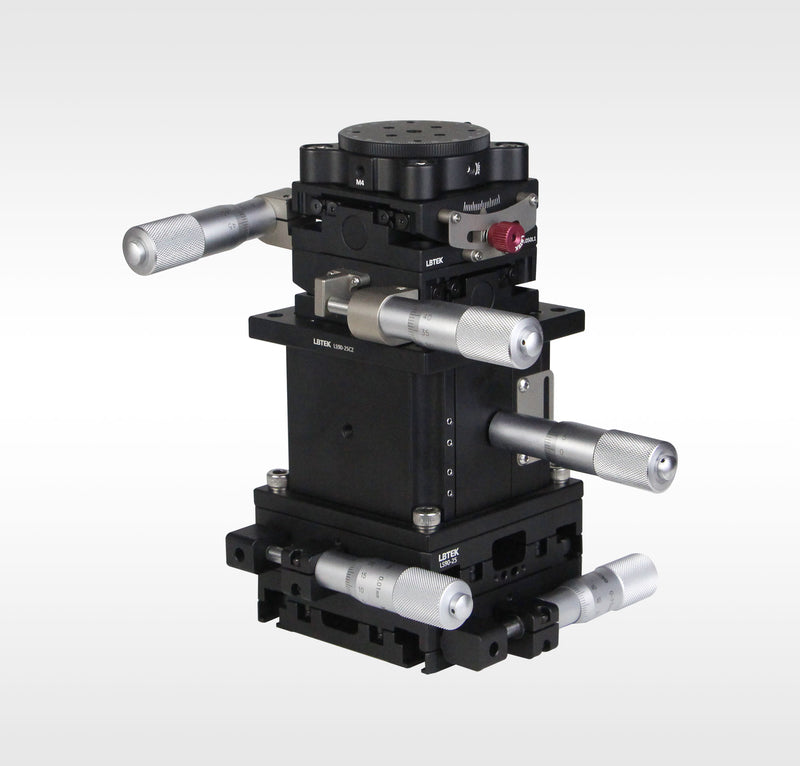

The LBTEK six-axis manual translation stage uses M6 cylindrical head screws to assemble the LS90 series linear translation stages. The assembled unit can control movement in the X, Y, and Z directions with a travel range of 25mm. The AS65 series angular translation stage and RP series rotary translation stage can be mounted on the platform of the linear translation stage, providing θX and θY axis travel ranges of ±8° and ±10° respectively, and a θZ axis travel range of 360°. Note: This series of products is shipped as finished goods and does not require manual installation by customers.

Key Features

The LS90 series translation stage controls movement along the X, Y, and Z axes
The AS65 series translation stage controls rotation around the X and Y axes
The RP series translation stage controls rotation around the Z axis

Application

Six-axis manual translation stage assembly diagram

Type	Left-handed system
Material	Aluminum alloy 6061-T6
Surface Treatment	Black anodized
Weight	3.37 kg
Attribute 2506	±8°
Attribute 2507	±10°
Attribute 1174	360°
Beam Splitting Pattern	25 mm
Tabletop size	Ø56 mm
Length	M6 (1 piece), M4 (4 pieces), M3 (4 pieces)
Hex Key Wrenches Included	4 M6×8 hex socket head cap screws; 1 5 mm short hex key
Load Capacity	2.5 kg

Lead Time: 5.0 week1s

No CAD drawings available for this product.
