The Five-Axis Stainless Steel Fiber Alignment Stages and Accessories FCSS-L5 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.

✔ In Stock — Ships Today

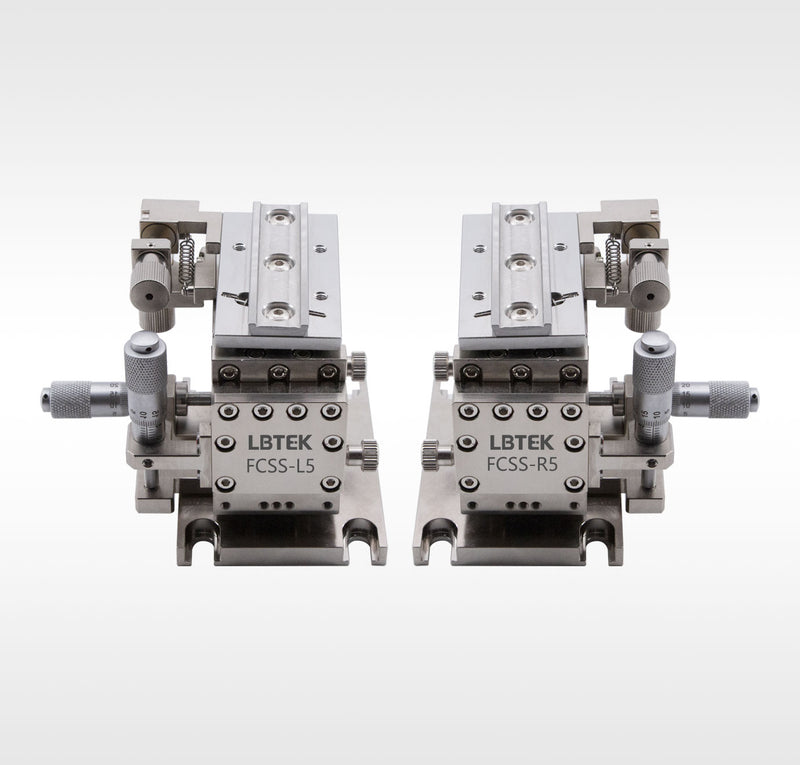

The LBTEK Five-Axis Stainless Steel Fiber Optic Translation Stage is a five-axis stage featuring high-resolution linear stages (XYZ) and angular stages (θyθz). The X and Y axes have a travel range of ±6.5 mm, while the Z axis offers ±5 mm of travel, with a resolution of up to 10 μm per division. The θy and θz axes provide ±3° of travel with an adjustment precision of 0.3° per revolution. The base plate includes four M6 U-shaped mounting slots for securing the translation stage. The purchase of the LBTEK Five-Axis Stainless Steel Fiber Optic Translation Stage includes four M6 hex socket head cap screws.

Key Features

Applicable to fiber optic coupling systems
Linear adjustment in X, Y, and Z axes
Angular adjustment in θy and θz
Left/right hand coordinate system configuration

Application

FCSS-L5 Micrometer Head Schematic Diagram

Material	Stainless steel
Surface Treatment	Nickel plating
XY-axis travel	±6.5 mm
Attribute 1230	±5 mm
Attribute 1173	±3°
Operating Wavelength Range	10 μm/division
Type	Left-handed system
Weight	1.2 kg
Mounting Hardware	M6×12 Hex Socket Head Cap Screw/4 pcs
Attribute 1283	0.3°/rev
Attribute 1284	5 μm
Holding Force	1.5 kgf

No documents available for this product.

No CAD drawings available for this product.

Product Family: Multi-axis translation stage (39 variants)
