Five-Axis Stainless Steel Fiber Alignment Stages and Accessories FCSS-R5

FCSS-R5
$2,712.20
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS REACH

The Five-Axis Stainless Steel Fiber Alignment Stages and Accessories FCSS-R5 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.

✔ In Stock — Ships Today

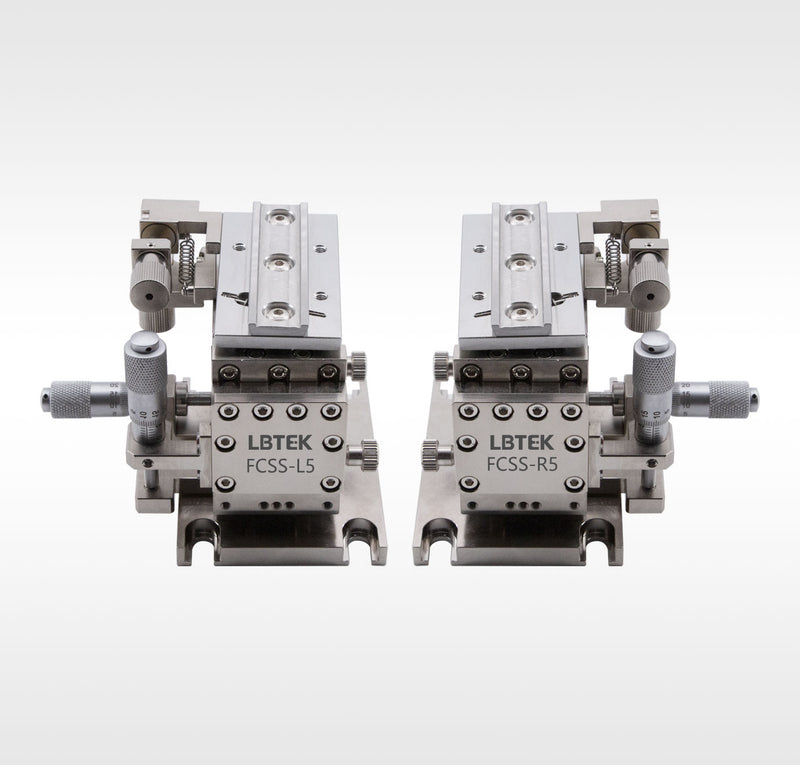

The LBTEK Five-Axis Stainless Steel Fiber Optic Translation Stage is a five-axis stage featuring high-resolution linear stages (XYZ) and angular stages (θyθz). The X and Y axes have a travel range of ±6.5 mm, while the Z axis offers ±5 mm of travel, with a resolution of up to 10 μm per division. The θy and θz axes provide ±3° of travel with an adjustment precision of 0.3° per revolution. The base plate includes four M6 U-shaped mounting slots for securing the translation stage. The purchase of the LBTEK Five-Axis Stainless Steel Fiber Optic Translation Stage includes four M6 hex socket head cap screws.

Key Features

  • Applicable to fiber optic coupling systems
  • Linear adjustment in X, Y, and Z axes
  • Angular adjustment in θy and θz
  • Left/right hand coordinate system configuration

Application

FCSS-L5 Micrometer Head Schematic Diagram

Material Stainless steel
Surface Treatment Nickel plating
Type Right-handed coordinate system
Weight 1.2 kg
Mounting Hardware M6×12 Hex Socket Head Cap Screw/4 pcs
Operating Wavelength Range 10 μm/division
Attribute 1173 ±3°
Attribute 1230 ±5 mm
XY-axis travel ±6.5 mm
Attribute 1283 0.3°/rev
Attribute 1284 5 μm
Holding Force 1.5 kgf
